Electric valve actuator RTS CM
multi-turn90°variable-speed

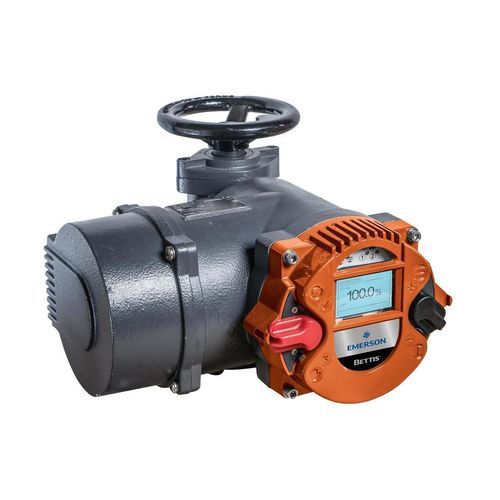

Electric valve actuator - RTS CM - BETTIS - multi-turn / 90° / variable-speed
Electric valve actuator - RTS CM - BETTIS - multi-turn / 90° / variable-speed
Electric valve actuator - RTS CM - BETTIS - multi-turn / 90° / variable-speed - image - 2
Add to favorites
Compare this product

Characteristics

Type
electric
Movement
90°, multi-turn
Other characteristics
compact, ATEX, adjustable, DC, anti-corrosion, variable-speed, low temperature, digital, wireless, with integrated process controller
Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 64 Nm
(47.2 ft.lb)

Rotational speed

Min.: 1 rpm
(6.28 rad.min-1)

Max.: 72 rpm
(452.39 rad.min-1)

Description

Product description
A non-intrusive intelligent compact multi-turn electric actuator designed for ON/OFF and process control of valves. The corrosion-protected compact enclosure and brushless DC propulsion enable continuous modulation and configurable speed profiles for oil & gas, power generation, chemical, HVAC and water/wastewater applications.

Key features
  • Compact, lightweight design with corrosion protection
  • Non-intrusive intelligent control electronics
  • Supports On/Off (S2/Class A&B) and continuous modulation (S9/Class D)
  • Adjustable torque up to 47 lbf·ft (64 Nm)
  • Variable speed range 1–72 rpm
  • Brushless DC motor technology for low maintenance
  • Position resolution 0.1% for accurate control
  • Rotatable control cover in 90° steps with remote mounting option
  • Local user interface plus wireless Bluetooth® for configuration, monitoring and diagnostics
  • Optional PID control for process applications

Technical specifications
  • Power source: Electric
  • Product type: Multi-turn electric actuator
  • Actuation: Electric
  • Torque: up to 47 lbf·ft (64 Nm)
  • Speed: adjustable 1–72 rpm
  • Motor: Brushless DC
  • Position resolution: 0.1%
  • Certifications: ATEX, IECEx, UL, CSA
  • Control modes: On/Off, Continuous modulation
