Electric valve actuator RTS FL
linearsingle-acting with return springvariable-speed

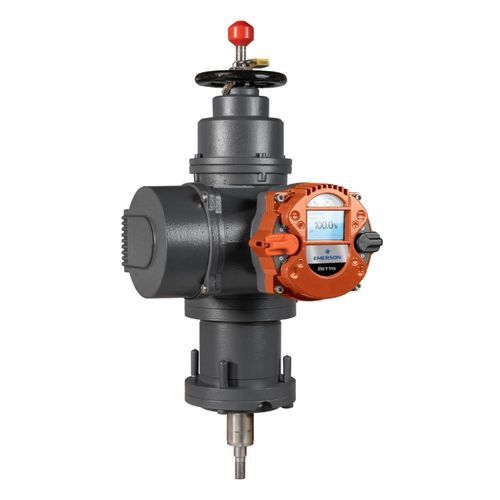

Electric valve actuator - RTS FL - BETTIS - linear / single-acting with return spring / variable-speed
Electric valve actuator - RTS FL - BETTIS - linear / single-acting with return spring / variable-speed
Add to favorites
Compare this product

Characteristics

Type
electric
Movement
linear
Configuration
single-acting with return spring
Other characteristics
for gas, compact, with handwheel, ATEX, adjustable, variable-speed, digital, remote-controlled, for chemical applications, wireless, for high-pressure pipelines, for HVAC installation pressure control, spring-return, with integrated process controller
Actuator force

Min.: 0 N

Max.: 45,000 N

Description

Product overview
A non-intrusive, intelligent fail-safe linear electric actuator designed for ON/OFF and continuous modulation control in safety-critical environments. The compact mechanical spring-return architecture triggers fail-safe action on loss of power or command signal without relying on super-capacitor or battery backup. The actuator provides absolute position detection with 0.1% resolution and configurable speed settings, making it suitable for valves in oil & gas, power, chemical, HVAC and water & wastewater applications.

Key features
  • Non-intrusive intelligent control
  • Supports On/Off (S2/Class A & B) and continuous modulation (S9/Class D)
  • Electric thrust up to 10,116 lbs (45 kN)
  • Mechanical spring-return fail-safe (stem extended or retracted)
  • Direct coupling to valve shaft on fail-safe action
  • Adjustable speed and output force
  • Selectable fail-safe trigger (drop-off 24 VDC signal or main power loss)
  • Absolute position detection, resolution 0.1%
  • SIL3 capable
  • Optional de-clutchable handwheel
  • Rotatable control cover in 90° steps; remote mounting option
  • Local user interface with Bluetooth® wireless for configuration, monitoring and diagnostics
  • Optional PID control


Applications
  • Oil & Gas
  • Power generation
  • Chemical industry
  • HVAC systems
  • Water and wastewater treatment


Technical specifications
  • Model / Denomination: RTS FL
  • Brand: Bettis
  • Power source: Electric
  • Product type: Linear electric actuator for valves
  • Actuation: Electric with mechanical spring-return fail-safe
  • Control type: On/Off and continuous modulation
  • Thrust: Up to 10,116 lbs (45 kN) electric thrust
  • Fail-safe mechanism: Mechanical spring-return; fail-safe action can be stem extended or stem retracted
  • Fail-safe trigger: Selectable (drop-off 24 VDC fail-safe signal or main power supply loss)
  • Position detection: Absolute position detection; position resolution 0.1%
  • Safety / Certification capability: SIL3 capable; certifications available (e.g., ATEX, IECEx, UL, CSA)
  • Human interface: Local user interface with Bluetooth® wireless for configuration, monitoring and diagnostics
  • Mechanical features: Direct coupling to valve shaft on fail-safe, adjustable speed and force, optional de-clutchable handwheel, rotatable control cover (90° steps) with remote mounting option
  • Energy storage: No dependency on super-capacitor or battery backup for fail-safe action
  • Optional features: PID control (optional)
