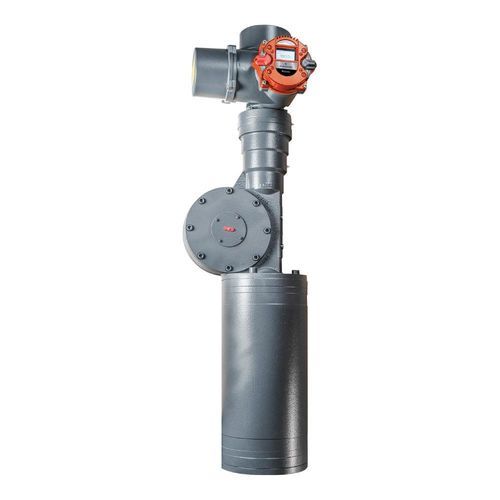

Electric valve actuator Bettis RTS FQ

quarter-turn90°direct-drive

Product overview
The Bettis RTS FQ is a non-intrusive, quarter-turn fail-safe electric valve actuator designed for reliable ON/OFF and continuous modulation control in safety-critical installations. Its compact mechanical spring-return fail-safe design triggers on loss of power or signal without reliance on batteries or super-capacitors, making it suitable for oil & gas, power, chemical, HVAC, water and wastewater applications.

Key features

• Intelligent, non-intrusive actuator architecture
• On/Off (S2/Class A/B) and continuous modulation (S9/Class D)
• Electric torque up to 2729 ft-lbs (3700 Nm)
• Mechanical spring-return fail-safe (clockwise or counter-clockwise)
• Direct coupling of fail-safe mechanism to valve shaft
• Adjustable speed and torque settings
• Selectable fail-safe trigger (24 VDC signal or main power loss)
• Position resolution 0.1%
• SIL3 capable design
• Optional de-clutchable handwheel
• Rotatable control cover in 90° increments and remote-mounting option
• Local user interface with Bluetooth for configuration, monitoring and diagnostics
• Optional PID control

Technical specifications

• Power source: Electric
• Product type: Quarter-turn electric actuator, fail-safe
• Actuation: Electric
• Control type: On/Off, continuous modulation
• Torque: Up to 2729 ft-lbs (3700 Nm)
• Fail-safe: Mechanical spring return (clockwise or counter-clockwise)
• Fail-safe trigger options: Selectable (24 VDC fail-safe signal or main power supply)
• Position resolution: 0.1%
• SIL capability: SIL3 capable
• Optional features: PID control, de-clutchable handwheel, rotatable control cover, Bluetooth UI
• Indicative certifications: ATEX, IECEx, UL, CSA

Typical applications

• Oil & gas valves (emergency shutdown and control)
• Power generation and distribution
• Chemical and petrochemical process valves
• HVAC systems and building services
• Water and wastewater treatment facilities
