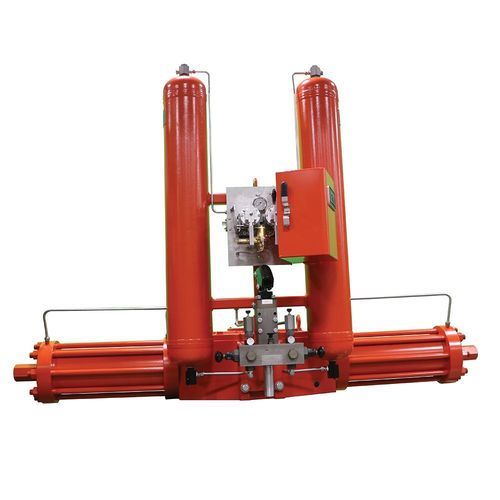

Hydraulic valve actuator GH

linearrotaryquarter-turn

Product Description
The Bettis-GH Series is a high-pressure scotch yoke hydraulic valve actuator designed to automate valves on gas transmission pipelines where pneumatic or centralized hydraulic supplies are not available. It is engineered for remote and harsh-field installations to provide reliable quarter-turn and linear actuation for large-scale pipeline control.

Key Features

• Operates high-pressure natural gas pipelines in remote locations and under severe climatic conditions
• Zero-leak pistons and rod seals with materials selected for each application
• Multiple control system options including remote control, high/low shutoff and line-break protection
• Five-year material and workmanship warranty
• Converts linear motion to rotary motion (scotch yoke) with breakaway torques from 5,000 lb‑in (565 Nm) to 6,000,000 lb‑in (678,000 Nm)
• Standard lightweight cast aluminum drive case; optional ductile iron or cast steel cases available

Specifications (summary)
Power Source — Hydraulic
Product Type — Scotch Yoke, Hydraulic
Actuation — Rotary; Quarter-turn; Linear
Control Type — On/off
Certifications — Intended for use in large-scale fixed installations excluded from scope of Directive 2011/65/EU (RoHS 2)

Technical specifications

• Power Source: Hydraulic
• Product Type: Scotch Yoke, Hydraulic
• Actuation: Rotary; Quarter-turn; Linear
• Control Type: On/off
• Certifications: Intended for use in large-scale fixed installations excluded from scope of Directive 2011/65/EU (RoHS 2)
• Seals: Zero-leak pistons and rod seals (materials selected per application)
• Torque capability: Breakaway torques from 5,000 lb‑in (565 Nm) up to 6,000,000 lb‑in (678,000 Nm)
• Drive case materials: Standard lightweight cast aluminum; optional ductile iron or cast steel cases available
• Control options: Remote control, high/low shutoff, line break and other control system options
• Warranty: Five-year material and workmanship warranty
