Hydraulic valve actuator GS
quarter-turnScotch yokesingle-acting

Hydraulic valve actuator - GS - BETTIS - quarter-turn / Scotch yoke / single-acting
Hydraulic valve actuator - GS - BETTIS - quarter-turn / Scotch yoke / single-acting
Hydraulic valve actuator - GS - BETTIS - quarter-turn / Scotch yoke / single-acting - image - 2
Hydraulic valve actuator - GS - BETTIS - quarter-turn / Scotch yoke / single-acting - image - 3
Hydraulic valve actuator - GS - BETTIS - quarter-turn / Scotch yoke / single-acting - image - 4
Add to favorites
Compare this product

Characteristics

Type
hydraulic
Movement
quarter-turn
Technology
Scotch yoke
Configuration
double-acting, single-acting
Protection class
IP67, IP66
Other characteristics
subsea
Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)

Rotation angle

90 °

Description

Overview
The Bettis GS-Series Scotch Yoke hydraulic valve actuator provides failsafe valve operation for offshore and industrial applications and supports diver or ROV intervention systems.

Applications
  • Offshore splash zone, risers and subsea valves
  • Process, power and petrochemical plants requiring failsafe actuation
  • Valves requiring remote intervention or underwater maintenance


Key features
  • Over fifteen alerts and alarms to help detect abnormalities in the system
  • Five-year material and workmanship warranty
  • Patented Tension-lok device that positively locks the spring module for safe removal and installation
  • PED 97/23/EC compliant for pressure-retaining components
  • Meets IP66 and IP67M for submergence and high-pressure water deluge protection
  • Modular design offering multiple configurations and reduced inventory through interchangeable modules
  • Interchangeable power and spring modules for rapid reversal of fail-safe mode
  • Suitable for applications requiring SIL-capable solutions
  • Field-serviceable modular configuration: convertible between single-acting and double-acting and allows addition of a hydraulic manual override after installation
  • Available mechanical and manual overrides for G-Series models
  • Can be supplied as a complete Valve Operating System (VOS) combining actuator, controls and valve


Technical specifications
  • Power source: Hydraulic
  • Product type: Hydraulic actuator
  • Actuation: Double-acting (configurable)
  • Enclosure: Sealed — IP66 / IP67M (specific ratings available on request)
  • Modularity: Interchangeable power and spring modules
  • Warranty: Five-year material and workmanship
  • RoHS: Intended for large-scale fixed installations excluded from Directive 2011/65/EU (RoHS 2)


Maintenance & options
  • Tension-lok for safe spring handling to eliminate accidental spring release
  • Field-serviceable modules for safe maintenance and lower lifecycle inventory
  • Options include hydraulic manual override, mechanical/manual overrides and configuration for integration into a complete VOS

Catalogs

G-series
G-series
6 Pages

Other BETTIS products

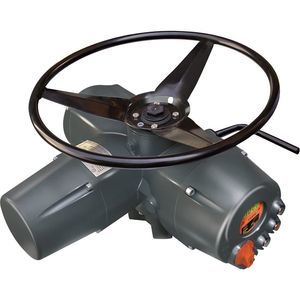

Electric Actuators
