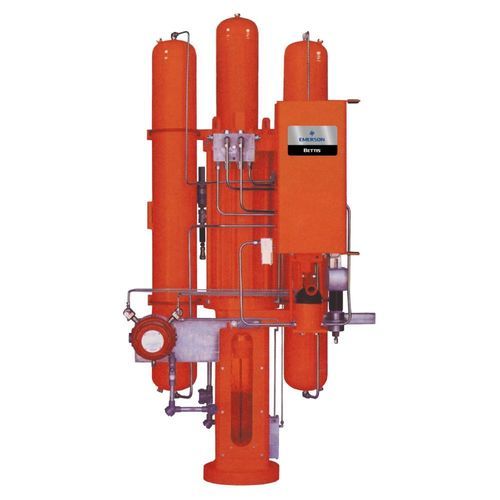

Hydraulic valve actuator Bettis DGH
linearpistonremote-controlled

Hydraulic valve actuator - Bettis DGH - BETTIS - linear / piston / remote-controlled
Hydraulic valve actuator - Bettis DGH - BETTIS - linear / piston / remote-controlled
Add to favorites
Compare this product

Characteristics

Type
hydraulic
Movement
linear
Technology
piston
Other characteristics
remote-controlled, ATEX, for high-pressure pipelines, for gas, for control of shut-off
Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)

Description

Product description
The Bettis gas-hydraulic linear valve actuator is designed for high-pressure natural gas transmission pipelines where pneumatic or hydraulic supply lines are not available. It provides linear on/off and emergency shutdown (ESD) control suitable for remote and harsh environments.

Key Features
  • Controls high-pressure natural gas pipelines in remote locations and under severe climatic conditions
  • Zero-leak piston and rod seals; materials selectable to suit the application
  • Multiple control system options including remote control, high/low shutoff and line-break detection
  • ATEX certified for use in explosive atmospheres
  • Five-year warranty on materials and workmanship


Technical specifications
  • Power source: Gas hydraulic
  • Product type: Gas hydraulic actuator (linear)
  • Actuation: Linear
  • Control type: On/off, ESD
  • Certifications: ATEX. This product is intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).

Catalogs

No catalogs are available for this product.

See all of BETTIS‘s catalogs
