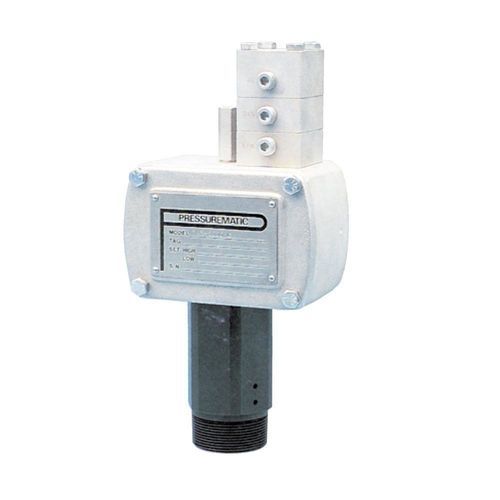

Piston pressure regulator PressureMaticpilote-operatedflange
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Other characteristics
- pilote-operated, flange
- Pressure
Min.: 0 bar
(0 psi)Max.: 0 bar
(0 psi)- Orifice diameter
Min.: 0 mm
(0 in)Max.: 0 mm
(0 in)
Description
Product description
A pressure-sensing pilot device designed to monitor pipeline and process pressure and provide a pneumatic or hydraulic shutdown signal for high- or low-pressure protection. Suitable for integration with actuators and emergency shutdown systems in industrial installations.
Key features
Specifications
A pressure-sensing pilot device designed to monitor pipeline and process pressure and provide a pneumatic or hydraulic shutdown signal for high- or low-pressure protection. Suitable for integration with actuators and emergency shutdown systems in industrial installations.
Key features
- Field-adjustable high and low pressure set points via interchangeable range springs
- Manual or automatic reset option on the pilot valve
- Extended sensing range using replaceable springs to adapt to application requirements
- Positive piston stop to limit piston travel and protect against overpressure
- Secondary piston seal with dedicated safety vent
- Input connections: 1 1/2 or 2 NPT threaded or flanged
Specifications
- Product Type: Actuator accessories
- Control Type: On/off, ESD (emergency shutdown)
- Certifications: Excluded from RoHS 2 scope — intended for large-scale fixed installations
