Through-bore slip ring ECN038-03P2-12S-JZ
for industrial applicationsfor radar antennasfor telecommunication networks

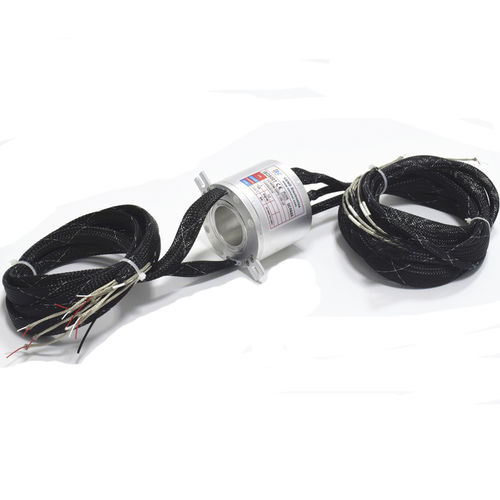

Through-bore slip ring - ECN038-03P2-12S-JZ - CENO Electronics technology Co., Ltd - for industrial applications / for radar antennas / for telecommunication networks
Through-bore slip ring - ECN038-03P2-12S-JZ - CENO Electronics technology Co., Ltd - for industrial applications / for radar antennas / for telecommunication networks
Through-bore slip ring - ECN038-03P2-12S-JZ - CENO Electronics technology Co., Ltd - for industrial applications / for radar antennas / for telecommunication networks - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
through-bore
Applications
for industrial applications, for radar antennas, for telecommunication networks
Other characteristics
IP54, high-performance, rugged
Voltage

24 V

Primary current

10 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 50 rpm
(314 rad.min-1)

Number of channels

15 unit

Internal diameter

38.1 mm
(1.5 in)

Description

This slip ring with through bore design, it transmits power and TL signal together , it is widely used for radar antenna and satellite communications systems. it can work at an 16000M altitude airborne operation,and working temperature -55℃~+70℃ ,even though it works in harsh environments,it still maintains high performance. Current - 3*10A,12*TL signal Electrical noise ≤70mΩ(50rpm) Dielectric strength ≥500V@50Hz Insulation resistance 500MΩ@500VDC(power) 300MΩ@500VDC(signal) Contact material precious metals Operating temperature -55~+70℃
