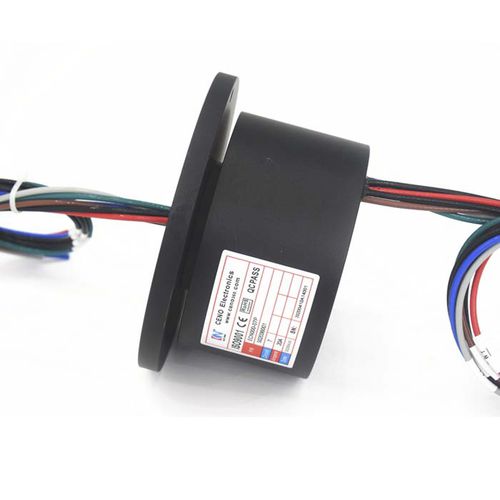

Ethernet slip ring ECN000-07Pindustrialaluminum alloyIP54
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet
- Applications
- industrial
- Material
- aluminum alloy
- Other characteristics
- IP54, flange, high-performance, low-torque
- Voltage
24 V, 380 V
- Primary current
20 A
- Rotational speed
Max.: 20 rpm
(126 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
7 unit
Description
Slip Rings are electromechanical components used to transmit electrical signals (e.g. analog, digital, Ethernet, video, fiber, radio, thermocouple, etc.) and power across a rotating interface. Slip ring units are available for a wide range of industrial, commercial and military applications.
Voltage - 380VAC/24V
Electrical noise - ≤70mΩ(50rpm)
Dielectric strength - ≥1500V@50Hz
Insulation resistance - 500MΩ@500VDC
Contact material - precious metals
Operating temperature - -30~+80℃
