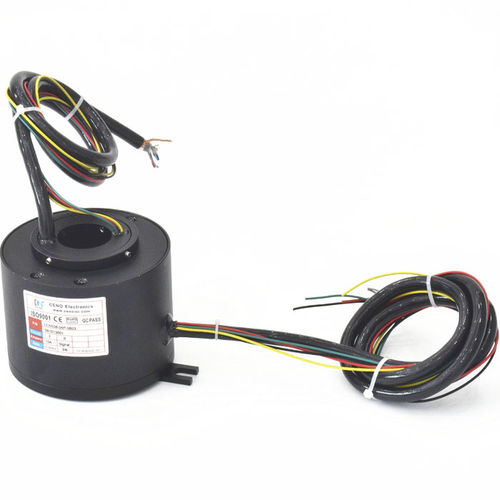

Electric slip ring ECN038-04P-0803
through-boreindustrialmetal

Electric slip ring - ECN038-04P-0803 - CENO Electronics technology Co., Ltd - through-bore / industrial / metal
Electric slip ring - ECN038-04P-0803 - CENO Electronics technology Co., Ltd - through-bore / industrial / metal
Electric slip ring - ECN038-04P-0803 - CENO Electronics technology Co., Ltd - through-bore / industrial / metal - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Type
electric
Construction
through-bore
Applications
industrial
Material
metal
Other characteristics
high-performance, noise immunity
Voltage

380 V

Primary current

3 A, 10 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

12 unit

Internal diameter

38.1 mm
(1.5 in)

Description

Slip ring comes to transferring electrical signals, energy, gases, or liquid media from a static to a rotating component, CENO electrical slip rings offer the optimum solution to clients . reliable signal and data transmission with high transfer rates, long lifespan, and easy of handling are the obvious essential requirements that CENO slip rings meet. Current - 4*10A,8*3A Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥500V@50Hz Insulation resistance - 1000MΩ@500VDC Contact material - precious metals Operating temperature - 40~+60℃
