Capsule slip ring ECN000-07P3-29S
for medical equipmentfor radar antennasaluminum alloy

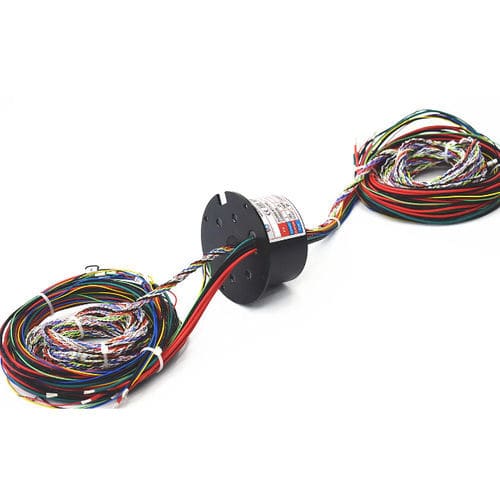

Capsule slip ring - ECN000-07P3-29S - CENO Electronics technology Co., Ltd - for medical equipment / for radar antennas / aluminum alloy
Capsule slip ring - ECN000-07P3-29S - CENO Electronics technology Co., Ltd - for medical equipment / for radar antennas / aluminum alloy
Capsule slip ring - ECN000-07P3-29S - CENO Electronics technology Co., Ltd - for medical equipment / for radar antennas / aluminum alloy - image - 2
Capsule slip ring - ECN000-07P3-29S - CENO Electronics technology Co., Ltd - for medical equipment / for radar antennas / aluminum alloy - image - 3
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
capsule
Applications
for medical equipment, for radar antennas
Material
aluminum alloy
Other characteristics
compact, IP54, with gold contacts, flange
Voltage

Max.: 220 V

Min.: 0 V

Primary current

3 A, 15 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

36 unit

Description

CENO's capsule slip rings have flexible spec options to fulfill the various and complex requirement of systems.Transmit data and analog signal, compatible with bus protocolRing number are range from 2 rings up to 200 rings .Power and signal are easily to be integrated into one slip rings under our years of proven technique.Outstanding signal types are Ethernet, Canbus, Profibus, RS, HDMI, HD-SDI, USB and so on. Typical outside diameters including 5.5mm,12.4mm,22mm. Widely used in radar system, military equipment, medical equipment. Circuit number¤t 7*15A,5*3a,24*signal Electrical noise ≤35mΩ Dielectric strength ≥500V@50Hz Insulation resistance - ≥50MΩ@500VDC Contact material Gold to gold
