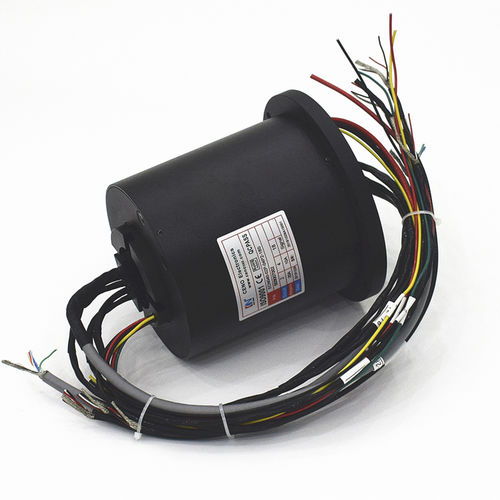

Ethernet slip ring ECN040-02P-04P2-18S
USBCAN busRS-422

Ethernet slip ring - ECN040-02P-04P2-18S - CENO Electronics technology Co., Ltd - USB / CAN bus / RS-422
Ethernet slip ring - ECN040-02P-04P2-18S - CENO Electronics technology Co., Ltd - USB / CAN bus / RS-422
Ethernet slip ring - ECN040-02P-04P2-18S - CENO Electronics technology Co., Ltd - USB / CAN bus / RS-422 - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Type
Ethernet, USB, CAN bus, RS-422
Construction
through-bore
Applications
industrial
Material
metal
Other characteristics
compact, IP54
Voltage

220 V

Primary current

10 A, 20 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628 rad.min-1)

Number of channels

19 unit

Internal diameter

40.5 mm
(1.59 in)

Description

This through bore slip ring inner diameter 40.5mm, it is mainly used for transmission of precision signals, weak current, large current and high voltage. the signal transmission supports Ethernet, USB, RS, Canbus and encoder signal, it is suitable for industrial automation equipment, it is durable ,compact and low cost ,in stock, fast lead time. Current - 2*20A,4*10A,4*RS422; 4*encoder, 1*MB network,4*others Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥1000V@50Hz Insulation resistance - 500MΩ@500VDC Contact material - precious metals Operating temperature - -20~+60℃
