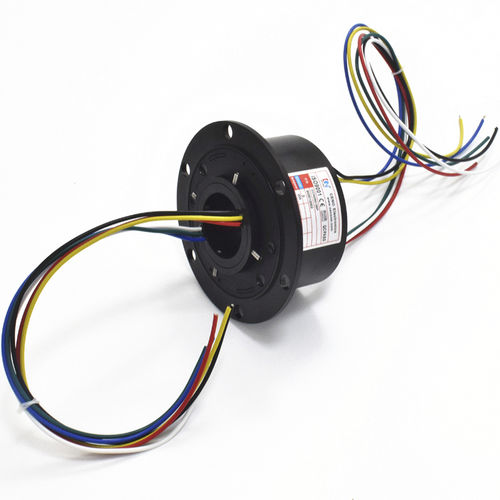

Through-hole slip ring ECN050-06P
industrialmetalIP54

Through-hole slip ring - ECN050-06P - CENO Electronics technology Co., Ltd - industrial / metal / IP54
Through-hole slip ring - ECN050-06P - CENO Electronics technology Co., Ltd - industrial / metal / IP54
Through-hole slip ring - ECN050-06P - CENO Electronics technology Co., Ltd - industrial / metal / IP54 - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
through-hole
Applications
industrial
Material
metal
Other characteristics
IP54, flange
Voltage

380 V

Primary current

20 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628 rad.min-1)

Number of channels

6 unit

Internal diameter

50 mm
(1.97 in)

Description

This slip ring has hole 50mm.Belongs to CENO's through hole series slip ring. Its rotation speed is designed at 100rpm to be applied on cement machinery. There is a big flange at rotor side and several holes on the flange for fixing purpose. Compared with our standard through bore slip ring, you can see there is no flange on standard model. In a word, CENO can design and manufacture the slip ring according to your real needs. Current - 6*20A Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥1000V@50Hz Insulation resistance - 500MΩ@500VDC Contact material - precious metal Operating temperature - -20~+60℃
