Hollow-shaft slip ring ECN025-16P3
industrialaluminum alloyIP54

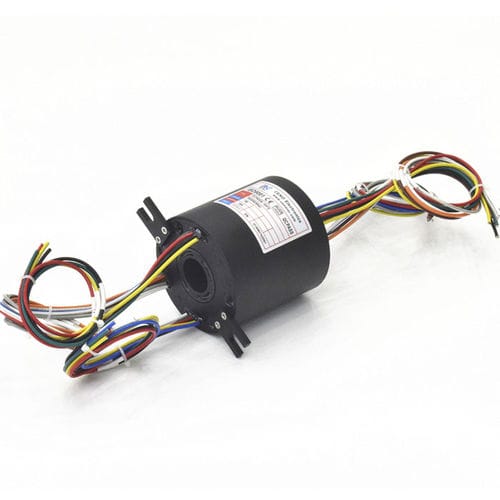

Hollow-shaft slip ring - ECN025-16P3 - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54
Hollow-shaft slip ring - ECN025-16P3 - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54
Hollow-shaft slip ring - ECN025-16P3 - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54 - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
hollow-shaft
Applications
industrial
Material
aluminum alloy
Other characteristics
IP54, low-torque, noise immunity
Voltage

380 V

Primary current

15 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

16 unit

Internal diameter

25.4 mm
(1 in)

Description

This is CENO electronics hollow shaft rotary union with aluminum alloy housing material, low electrical noise, smooth rotation, there is a through hole 25.4mm, we can use it for installation, align slip ring's through hole to mounting shaft, apply external force along the axis direction to move the slip ring to predetermined installation position, fixing slip ring rotor part and mounting shaft, fixing stator side via anti-rotation tab. Current - 16*15A Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥1000V@50Hz Insulation resistance - ≥500MΩ@500VDC Contact material - precious metals Operating temperature - -20~+60℃
