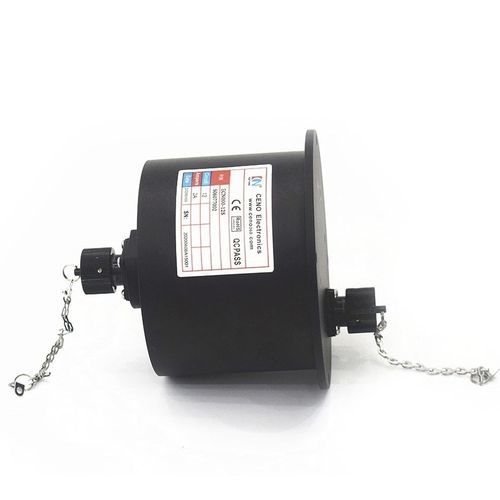

Custom-made slip ring ECN000-12S
solid-shaftindustrialflange

Custom-made slip ring - ECN000-12S - CENO Electronics technology Co., Ltd - solid-shaft / industrial / flange
Custom-made slip ring - ECN000-12S - CENO Electronics technology Co., Ltd - solid-shaft / industrial / flange
Custom-made slip ring - ECN000-12S - CENO Electronics technology Co., Ltd - solid-shaft / industrial / flange - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
solid-shaft
Applications
industrial
Other characteristics
flange, custom-made, IP64
Voltage

Max.: 380 V

Min.: 0 V

Primary current

2 A

Rotational speed

Max.: 20 rpm
(126 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

12 unit

Description

This is customized slip ring applied for tunnel dryer, there are aviation socket to transmit current on both rotor and stator side,without traditional wire, the aviation socket installs dust cover to prevent dust into the bearing interior, reduce the bearing wear. stator side flange installation rotation way. Current - 12*2A Voltage - 0~380VAC/VDC Electrical noise - ≤30mΩ(50rpm) Dielectric strength - ≥1000V@50Hz Insulation resistance - 300MΩ@500VDC Contact material - precious metal Operating temperature - -20~+80℃ Lead wire - Aviation socket
