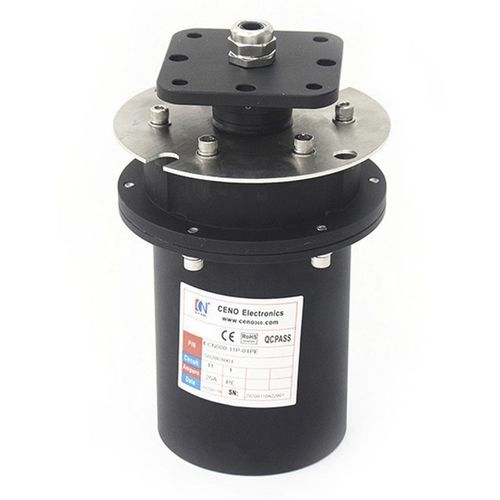

Slip ring for marine applications ECN000-11P-01PEfor industrial applicationsfor offshore applicationsaluminum alloy

slip ring for marine applications
slip ring for marine applications
slip ring for marine applications
Add to favorites
Compare this product
indicative price

Characteristics

Applications
for marine applications, for industrial applications, for offshore applications
Material
aluminum alloy
Other characteristics
IP65, custom, waterproof
Rotational speed

30 rpm (188 rad.min-1)

Current

25 A

Voltage

415 V

Number of channels

12 unit

Description

This is a highly protective and dust-proof custom slip ring, mainly used in industrial fields, such as food machinery. The product structure is different from other ordinary slip rings. The terminals replace the wires, which is convenient to connect. At the same time, it strengthens the protection of the shell and provides a higher degree of protection IP65. It is suitable for special working conditions. Rotation in any direction has stood the test of long-term complex field practice. Features •Waterproof and dust proof •The terminals replace the wires to easy connection •Stable performance and excellent quality Applications •Seaport machinery •Platform crane •Propulsion •Cable reel Optional •Circuit number •Current rating •Installation way •IP protection grade Specification Current :11*25A,1*PE Voltage : 0~415VAC/VDC Electrical noise : ≤30mΩ(50rpm) Dielectric strength: 1500V@50Hz(power) , 500V@50Hz(signal) Insulation resistance : 500MΩ@500VDC(power) , 100MΩ@100VDC(power) Operating speed : 0-30 rpm Contact material : precious metals Operating temperature : -20~+60℃ Housing material : aluminum alloy IP protection grade : IP65
