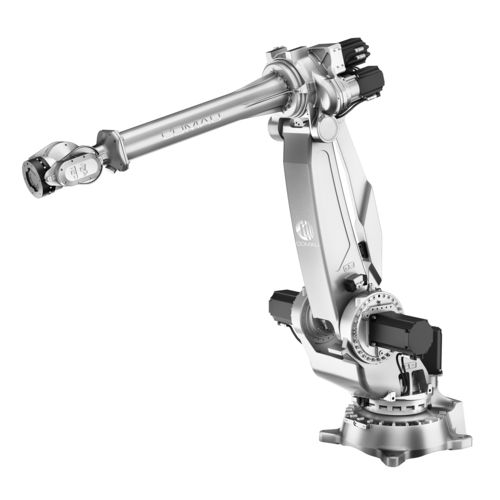

Articulated robot NJ-165-3.0

6-axisfor assemblypackaging

When Performance Matters ​We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more? Technical specifications Number of axes 6 Additional load on forearm (Kg) 50 Torque on axis 4 (Nm) 1230 Torque on axis 5 (Nm) 1230 Torque on axis 6 (Nm) 712 Stroke (Speed) on Axis 1 +/- 180° (100°/s) Stroke (Speed) on Axis 2 -95° / +180° (90°/s) Stroke (Speed) on Axis 3 -10° / -256° (110°/s) Stroke (Speed) on Axis 4 +/- 2700° (130°/s) Stroke (Speed) on Axis 5 +/- 125° (130°/s) Stroke (Speed) on Axis 6 +/- 2700° (195°/s) Tool coupling flange ISO 9409 - 1 - A 160 Protection class IP65 / IP67 Mounting position Floor / Ceiling Operating Areas A (mm) 3430 Operating Areas B (mm) 3000 Operating Areas C (mm) 2600 Operating Areas D (mm) 730 Operating Areas E (mm) 738
