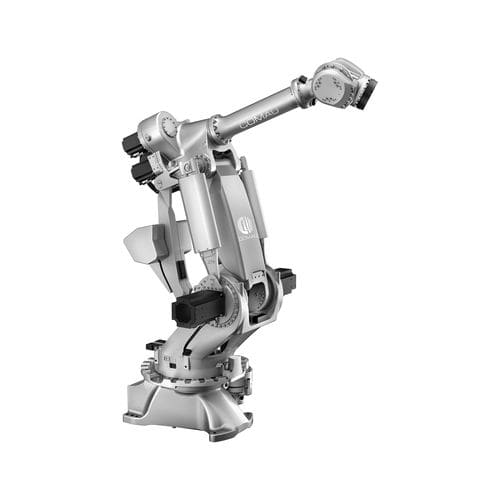

Articulated robot NJ-500-2.7

6-axishandlingfor assembly

When Performance Matters We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more? Technical specifications Number of axes 6 Additional load on forearm (Kg) 50 Torque on axis 4 (Nm) 2550 Torque on axis 5 (Nm) 2550 Torque on axis 6 (Nm) 1569 Stroke (Speed) on Axis 1 +/- 180° (85°/s) Stroke (Speed) on Axis 2 +75° / -60° (85°/s) Stroke (Speed) on Axis 3 -10° / -231° (85°/s) Stroke (Speed) on Axis 4 +/- 2700° (90°/s) Stroke (Speed) on Axis 5 +/- 125° (90°/s) Stroke (Speed) on Axis 6 +/- 2700° (120°/s) Tool coupling flange ISO 9409 - 1 - 200 - 6 - M12 Protection class IP65 / IP67 Mounting position Floor Operating Areas A (mm) 3392 Operating Areas B (mm) 2703 Operating Areas C (mm) 2895 Operating Areas D (mm) 486 Operating Areas E (mm) 181
