Articulated robot NJ-370-2.7
6-axisfor assemblypackaging

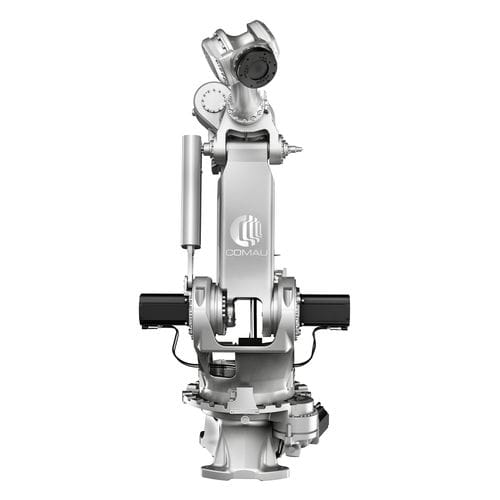

Articulated robot - NJ-370-2.7 - COMAU - 6-axis / for assembly / packaging
Articulated robot - NJ-370-2.7 - COMAU - 6-axis / for assembly / packaging
Articulated robot - NJ-370-2.7 - COMAU - 6-axis / for assembly / packaging - image - 2
Add to favorites
Compare this product

Characteristics

Type
articulated
Number of axes
6-axis
Function
for assembly, packaging, machining, plasma cutting, laser cutting, spot welding, deburring
Mounting
floor-mounted
Protection level
IP67, IP65
Payload

370 kg
(815.71 lb)

Reach

2,703 mm
(106.42 in)

Repeatability

0.15 mm
(0.0059 in)

Weight

2,100 kg
(4,629.7 lb)

Description

When Performance Matters We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more? Technical specifications Number of axes 6 Additional load on forearm (Kg) 50 Torque on axis 4 (Nm) 2109 Torque on axis 5 (Nm) 2109 Torque on axis 6 (Nm) 1177 Stroke (Speed) on Axis 1 +/- 180° (85°/s) Stroke (Speed) on Axis 2 +75° / - 60° (85°/s) Stroke (Speed) on Axis 3 -10° / - 231° (85°/s) Stroke (Speed) on Axis 4 +/- 2700° (90°/s) Stroke (Speed) on Axis 5 +/- 125° (90°/s) Stroke (Speed) on Axis 6 +/- 2700° (120°/s) Tool coupling flange ISO 9409 - 1 - 200 - 6 - M12 Protection class IP65 / IP67 Mounting position Floor Operating Areas A (mm) 3680 Operating Areas B (mm) 2997 Operating Areas C (mm) 3195 Operating Areas D (mm) 433 Operating Areas E (mm) -118
