Articulated robot NJ-130-3.7
6-axishandlingpackaging

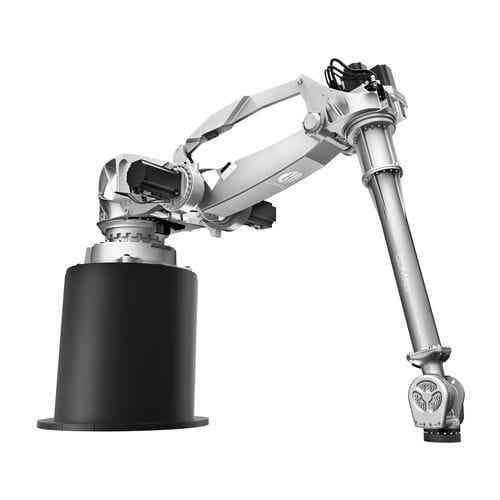

Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging - image - 2
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging - image - 3
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging - image - 4
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging - image - 5
Articulated robot - NJ-130-3.7 - COMAU - 6-axis / handling / packaging - image - 6
Add to favorites
Compare this product

Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, packaging, for press automation
Mounting
shelf
Protection level
IP65
Payload

130 kg
(286.601 lb)

Reach

3,741 mm
(147.28 in)

Repeatability

0.2 mm
(0.0079 in)

Weight

1,520 kg
(3,351 lb)

Description

Press-to-Press Automation Industry-leading technology and factory proven experience combine to ensure coordinated action, synchrony and press to-press cycle perfection. Technical specifications Number of axes 6 Additional load on forearm (Kg) 15 Torque on axis 4 (Nm) 1225 Torque on axis 5 (Nm) 1225 Torque on axis 6 (Nm) 648 Stroke (Speed) on Axis 1 +/- 180° (120°/s) Stroke (Speed) on Axis 2 -60° / +170° (95°/s) Stroke (Speed) on Axis 3 -292° / -21° (112°/s) Stroke (Speed) on Axis 4 +/- 2700° (180°/s) Stroke (Speed) on Axis 5 +/- 125° (175°/s) Stroke (Speed) on Axis 6 +/- 2700° (250°/s) Tool coupling flange ISO 9409 - 1 - A 160 Protection class IP44 / IP65 Wrist Mounting position Shelf Operating Areas A (mm) 3391 Operating Areas B (mm) 3741 Operating Areas C (mm) 712 Operating Areas D (mm) 2386 Operating Areas E (mm) 850

Catalogs

No catalogs are available for this product.

See all of COMAU‘s catalogs
