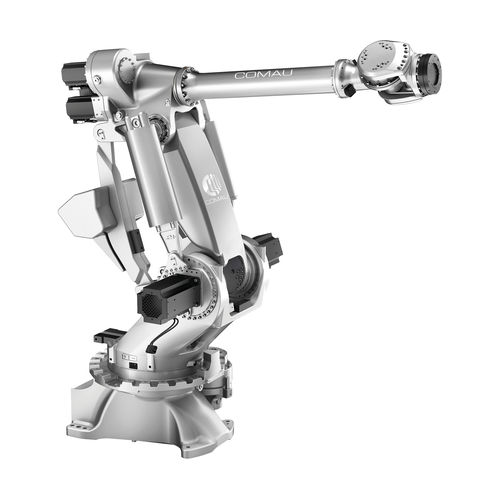

Articulated robot NJ-420-3.06-axishandlingfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- handling, for assembly, packaging, machining, plasma cutting, spot welding, deburring, measuring
- Mounting
- floor-mounted
- Protection level
- IP67, IP65
- Payload
420 kg
(925.942 lb)- Reach
2,997 mm
(117.99 in)- Repeatability
0.15 mm
(0.0059 in)- Weight
2,450 kg
(5,401.3 lb)
Description
When Performance Matters
We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?
Technical specifications
Number of axes
6
Additional load on forearm (Kg)
50
Torque on axis 4 (Nm)
2550
Torque on axis 5 (Nm)
2550
Torque on axis 6 (Nm)
1569
Stroke (Speed) on Axis 1
+/- 180° (85°/s)
Stroke (Speed) on Axis 2
+75° / -60° (85°/s)
Stroke (Speed) on Axis 3
-10° / -231° (85°/s)
Stroke (Speed) on Axis 4
+/- 2700° (90°/s)
Stroke (Speed) on Axis 5
+/- 125° (90°/s)
Stroke (Speed) on Axis 6
+/- 2700° (120°/s)
Tool coupling flange
ISO 9409 - 1 - 200 - 6 - M12
Protection class
IP65 / IP67
Mounting position
Floor
Operating Areas A (mm)
3680
Operating Areas B (mm)
2997
Operating Areas C (mm)
3195
Operating Areas D (mm)
433
Operating Areas E (mm)
-118
