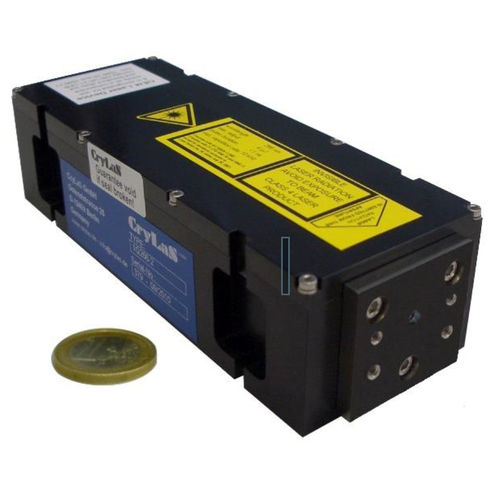

Nanosecond laser FTSS355-Q2
Q-switchedshort-pulsesolid-state

Nanosecond laser - FTSS355-Q2 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Nanosecond laser - FTSS355-Q2 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Add to favorites
Compare this product


Characteristics

Operational mode
Q-switched, nanosecond, short-pulse
Technology
solid-state
Spectrum
UV, monochromatic
Applications
for spectroscopy, industrial, for mass spectrometry, for microscopes, marking, for medical applications, for photolithography, engraving, for the glass industry, for research, measurement, for micro-machining, for workstations, R&D, for Raman spectroscopy, for semiconductors, laboratory
Other characteristics
single, OEM, single longitudinal mode, diode-pumped, precision, DPSS, sealed, high-performance, adjustable, low-noise, for integration, Nd:YAG, air-cooled, conduction-cooled, LD-pumped, single-mode, stabilized
Power

0.003 W

Max.: 0.003 W

Min.: 0 W

Wavelength

355 nm

Max.: 355 nm

Min.: 355 nm

Description

FTSS355-Q2 - 355 nm laser with 3 µJ at 10 kHz The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm. The FTSS355-Q2 laser emits pulses with a pulse width of approx. 1 ns at 355 nm and can be modulated from single shot to 10 kHz. The pulse energy is 3 µJ. CryLaS lasers impress with their simple installation, service-free operation and long service life.
