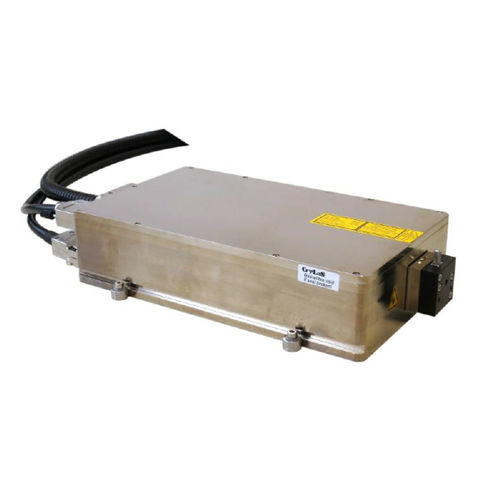

Nanosecond laser MOPA532-250Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- green, VIS, monochromatic
- Applications
- industrial, marking, for medical applications, for spectroscopy, for workstations, for photolithography, for microscopes, for research, engraving, R&D, laboratory, measurement, for micro-machining, for semiconductors, for the glass industry, for mass spectrometry
- Other characteristics
- precision, OEM, LD-pumped, sealed, single-mode, stabilized, single, high-performance, adjustable, low-noise, DPSS, for integration, MOPA, air-cooled, single longitudinal mode, diode-pumped, Nd:YAG, conduction-cooled
- Power
250 W
- Wavelength
532 nm
Description
MOPA532-250: 180 kW peak power at 532 nm
Our Master Oscillator Power Amplifier – MOPA for short – series contains a diode-pumped power amplifier in addition to a DPSS laser. High peak or high average power – whatever your application requires. Due to the special technical design of the laser system, it works in transversal single-mode operation with high peak-to-peak pulse power stability, medium medium power stability and short pulse duration of around 1 to 2 ns. The laser can be triggered either via an external signal source or via an internal oscillator using software commands. The MOPA532-250 is a high-peak power MOPA with a peak pulse power of over 180 kW. It delivers 250 µJ single pulse energy and can operate at repetition rates up to 1 kHz. The pulse energy is adjusted via simple terminal or software commands. The laser system is suitable for laser marking and processing as well as for applications in analytical measurement technology.
Catalogs
MOPA532-250
2 Pages
