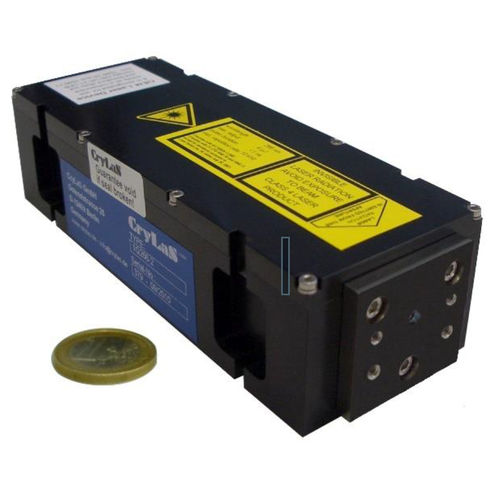

Nanosecond laser FQSS266-Q1Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- UV, monochromatic
- Applications
- for medical applications, industrial, marking, for workstations, for the glass industry, engraving, for spectroscopy, for photolithography, for microscopes, for research, measurement, for micro-machining, laboratory, R&D, for mass spectrometry, for Raman spectroscopy, for semiconductors
- Other characteristics
- OEM, precision, sealed, single, high-performance, adjustable, low-noise, single longitudinal mode, DPSS, Nd:YAG, LD-pumped, for integration, stabilized, air-cooled, diode-pumped, conduction-cooled, single-mode
- Power
Min.: 0 W
Max.: 0.004 W
0.004 W
- Wavelength
Min.: 266 nm
Max.: 266 nm
266 nm
Description
FQSS266-Q1 - 266 nm laser with 0.3 µJ at 20 kHz
The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm.
The FQSS266-Q1 laser emits pulses with a pulse width of approx. 1 ns at 266 nm and can be modulated from single shot to 20 kHz. The pulse energy is 0.3 µJ.
CryLaS lasers impress with their simple installation, service-free operation and long service life. This makes them ideal for OEM applications and demanding laboratory setups.
