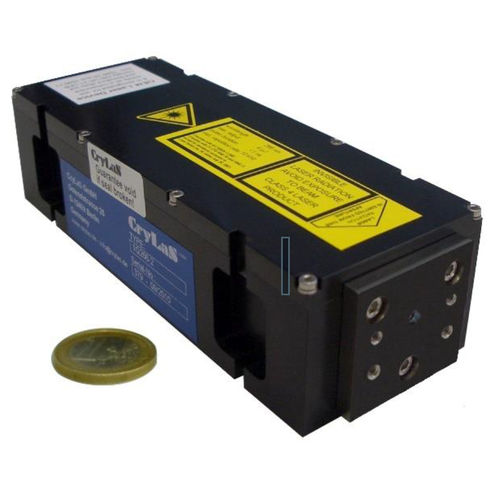

Nanosecond laser FQSS266-Q2Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- UV, monochromatic
- Applications
- R&D, industrial, marking, for medical applications, engraving, laboratory, for photolithography, for spectroscopy, for research, measurement, for workstations, for microscopes, for micro-machining, for Raman spectroscopy, for semiconductors, for mass spectrometry, for the glass industry
- Other characteristics
- precision, OEM, sealed, single, high-performance, adjustable, stabilized, LD-pumped, low-noise, DPSS, diode-pumped, for integration, air-cooled, conduction-cooled, single-mode, single longitudinal mode, Nd:YAG
- Power
Max.: 0.004 W
0.004 W
Min.: 0 W
- Wavelength
Max.: 266 nm
266 nm
Min.: 266 nm
Description
FQSS266-Q2 - 266 nm laser with 0.8 µJ at 10 kHz
The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm.
The FQSS266-Q2 laser emits pulses with a pulse width of approx. 1 ns at 266 nm and can be modulated from single shot to 10 kHz. The pulse energy is 0.8 µJ.
CryLaS lasers impress with their simple installation, service-free operation and long service life. This makes them ideal for OEM applications and demanding laboratory setups.
