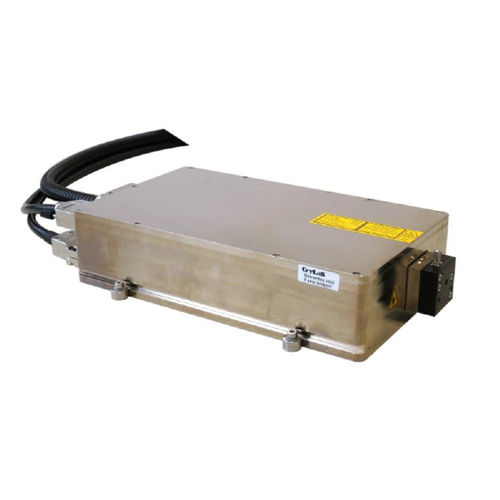

Nanosecond laser MOPA355-200
Q-switchedshort-pulsesolid-state

Nanosecond laser - MOPA355-200 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Nanosecond laser - MOPA355-200 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Add to favorites
Compare this product


Characteristics

Operational mode
Q-switched, nanosecond, short-pulse
Technology
solid-state
Spectrum
monochromatic, UV
Applications
industrial, marking, for medical applications, for spectroscopy, for research, engraving, for photolithography, for mass spectrometry, for microscopes, R&D, laboratory, measurement, for micro-machining, for semiconductors, for workstations, for the glass industry
Other characteristics
sealed, OEM, precision, single, diode-pumped, stabilized, high-performance, adjustable, low-noise, for integration, single-mode, single longitudinal mode, DPSS, MOPA, air-cooled, LD-pumped, conduction-cooled, Nd:YAG
Power

250 W

Wavelength

355 nm

Description

MOPA355-200: 140 kW peak power at 355 nm Our Master Oscillator Power Amplifier – MOPA for short – series contains a diode-pumped power amplifier in addition to a DPSS laser. High peak or high average power – whatever your application requires. Due to the special technical design of the laser system, it works in transversal single-mode operation with high peak-to-peak pulse power stability, medium medium power stability and short pulse duration of around 1 to 2 ns. The laser can be triggered either via an external signal source or via an internal oscillator using software commands. The MOPA355-200 is a high-peak power MOPA with a peak pulse power of over 140 kW. It delivers 250 µJ single pulse energy and can operate at repetition rates up to 1 kHz. The pulse energy is adjusted via simple terminal or software commands. The laser system is suitable for laser marking and processing as well as for applications in analytical measurement technology.
