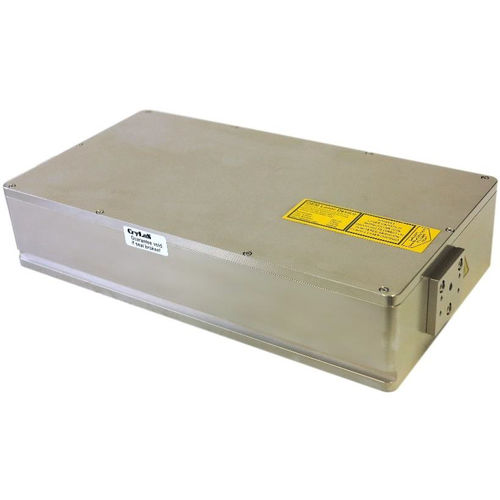

Nanosecond laser eMOPA355-100
Q-switchedshort-pulsesolid-state

Nanosecond laser - eMOPA355-100 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Nanosecond laser - eMOPA355-100 - CryLaS Crystal Laser Systems GmbH - Q-switched / short-pulse / solid-state
Add to favorites
Compare this product


Characteristics

Operational mode
Q-switched, nanosecond, short-pulse
Technology
solid-state
Spectrum
UV, monochromatic
Applications
marking, engraving, for spectroscopy, for research, inspection, R&D, for Raman spectroscopy, laboratory, for mass spectrometry, for photolithography
Other characteristics
high-performance, OEM, Nd:YAG, single longitudinal mode, precision, sealed, single, adjustable, low-noise, DPSS, LD-pumped, for integration, diode-pumped, air-cooled, stabilized, conduction-cooled, single-mode
Power

0.1 W

Min.: 0 W

Max.: 0.1 W

Wavelength

355 nm

Min.: 355 nm

Max.: 355 nm

Description

eMOPA355-100 - 100 mW DUV pulsed laser at 355 nm The eMOPA product series is based on a diode-pumped, passively Q-switched solid-state laser as the master oscillator and a downstream diode-pumped power amplifier with a patented optical design. Wavelengths from the DUV to the green spectral range can be generated for this series: 213 nm, 266 nm, 355 nm and 532 nm. The eMOPA355-100 emits pulses with a pulse width of around 1 ns and 100 µJ pulse energy. The average output power is 100 mW in transverse single-mode operation at a wavelength of 355 nm and peak pulse powers of >80 kW. The repetition rate can be adjusted from single shot to a maximum of 1 kHz by external triggering or the supplied software. The eMOPA is ideal for 24/7 industrial use and is primarily used in ophthalmology. By adapting the lasers to the requirements of our customers, a wide range of applications is possible, such as photoacoustics and ophthalmological markings.
