Nanosecond laser DSS1064-Q1Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- NIR, monochromatic
- Applications
- for spectroscopy, industrial, for microscopes, marking, for medical applications, engraving, for research, measurement, for micro-machining, for the glass industry, for photolithography, laboratory, for mass spectrometry, R&D, for Raman spectroscopy, for semiconductors, for workstations
- Other characteristics
- single, OEM, precision, sealed, LD-pumped, high-performance, adjustable, low-noise, for integration, air-cooled, single longitudinal mode, stabilized, DPSS, diode-pumped, conduction-cooled, Nd:YAG, single-mode
- Power
0.15 W
Max.: 0.15 W
Min.: 0 W
- Wavelength
1,064 nm
Max.: 1,064 nm
Min.: 1,064 nm
Description

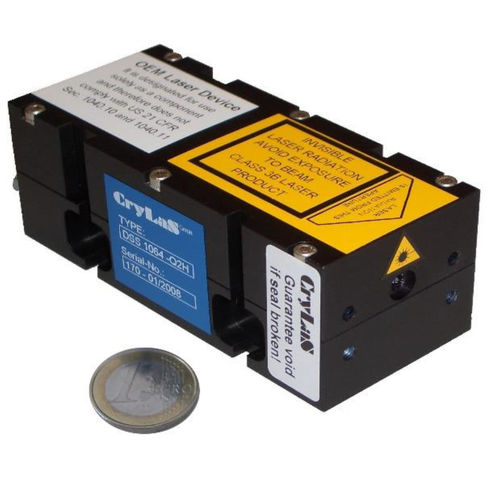

DSS1064-Q1 - 1064 nm laser with 10 µJ at 20 kHz
The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm.
The DSS1064-Q1 laser emits pulses with a pulse width of approx. 1.5 ns at 1064 nm and can be modulated from single shot to 20 kHz. The pulse energy is 10 µJ.
CryLaS lasers impress with their simple installation, service-free operation and long service life.
