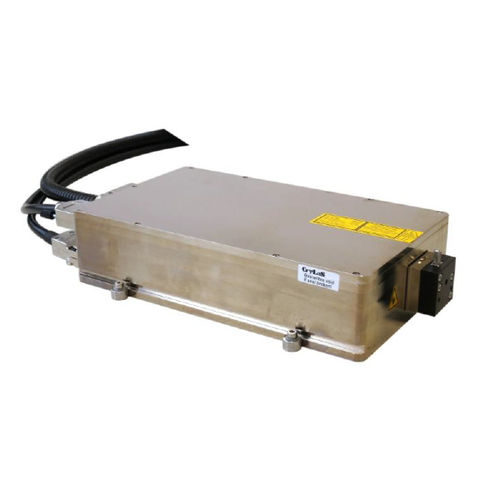

Nanosecond laser MOPA1064-650

Q-switchedshort-pulsesolid-state

MOPA1064-650: 400 kW peak power at 1064 nm Our Master Oscillator Power Amplifier – MOPA for short – series contains a diode-pumped power amplifier in addition to a DPSS laser. High peak or high average power – whatever your application requires. Due to the special technical design of the laser system, it works in transversal single-mode operation with high peak-to-peak pulse power stability, medium medium power stability and short pulse duration of around 1 to 2 ns. The laser can be triggered either via an external signal source or via an internal oscillator using software commands. The MOPA1064-650 is a high-peak power MOPA with a peak pulse power of over 400 kW. It delivers 650 µJ single pulse energy and can operate at repetition rates up to 1 kHz. The pulse energy is adjusted via simple terminal or software commands. The laser system is suitable for laser marking and processing as well as for applications in analytical measurement technology.
