Nanosecond laser FQSS266-Q4Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- UV, monochromatic
- Applications
- industrial, marking, for medical applications, for mass spectrometry, for workstations, engraving, for spectroscopy, for the glass industry, for research, measurement, for micro-machining, for microscopes, laboratory, for photolithography, R&D, for Raman spectroscopy, for semiconductors
- Other characteristics
- sealed, OEM, precision, single, high-performance, Nd:YAG, single longitudinal mode, adjustable, low-noise, for integration, air-cooled, LD-pumped, conduction-cooled, single-mode, diode-pumped, stabilized, DPSS
- Power
Min.: 0 W
Max.: 0.012 W
0.012 W
- Wavelength
Min.: 266 nm
Max.: 266 nm
266 nm
Description

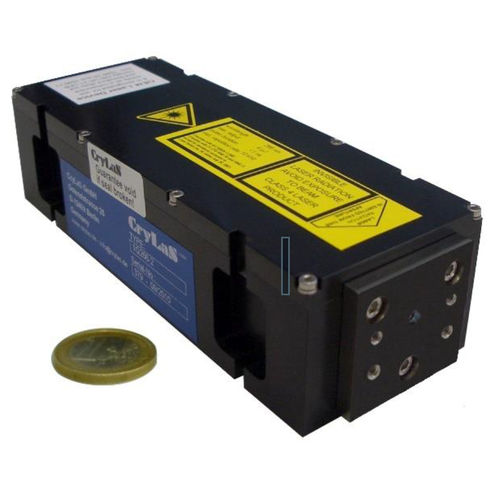

FQSS266-Q4 - 266 nm laser with 12 µJ at 1 kHz
The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm.
The FQSS266-Q4 laser emits pulses with a pulse width of approx. 1 ns at 266 nm and can be modulated from single shot to 1 kHz. The pulse energy is 12 µJ.
CryLaS lasers impress with their simple installation, service-free operation and long service life.
