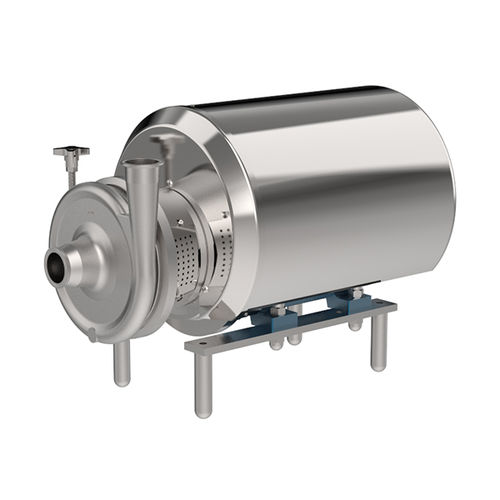

Centrifugal pump CSA seriesfor chemicalsfor food productselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for chemicals, for food products
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the food and beverage industry, for the pharmaceutical industry, for the cosmetics industry, sanitary
- Flow
300 m³/h
(10,594.40002 ft³/h)- Head
300 m
(984'03" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)- Length
Min.: 569 mm
(22 in)Max.: 1,118 mm
(44 in)- Width
Min.: 298 mm
(11.73 in)Max.: 420 mm
(16.54 in)- Height
Min.: 412 mm
(16.22 in)Max.: 657 mm
(25.87 in)
Description
The "CSA" centrifugal pumps are designed, tested and approved in accordance with EHEDG specifications and American 3A sanitary standards. They are essentially used in the food and pharmaceutical sectors where specific health and hygiene standards are enforced. Derived from the "CS" series, they have a special finish with an Ra less than 0.8 microns.
Catalogs
GENERAL CATALOGUE
25 Pages
