Oil anti-pollution boom BARC 2545R

floating

Overview

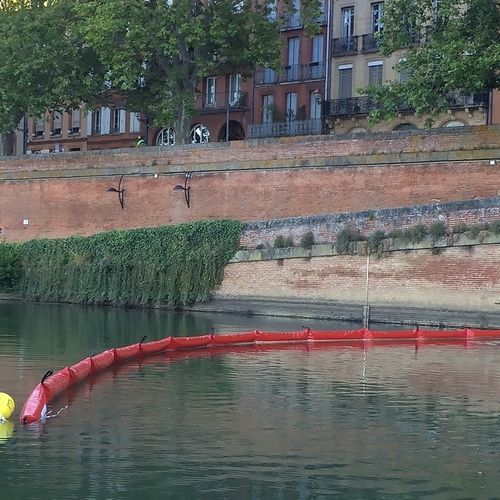

This floating containment boom is designed for preventive and curative use to close, contain or divert oil slicks and other pollutants on water surfaces (ports, estuaries, coastal waters, rivers, lakes). Constructed in PVC-coated polyester fabric (900 g/m²) with hydrocarbon-resistant treatment.

Construction and materials
The boom consists of a series of closed-cell foam floatation tubes housed in sealed PVC-coated polyester fabric compartments. A galvanized marine-steel ballast chain runs along the length inside a protective sleeve. Compartmentalisation with an integrated skirt allows the boom to follow surface movements. End plates with bolts enable connection between sections and integrated handling handles facilitate deployment.

Performance and maintenance
Key performance features:

• Tear and torsion resistant construction
• Operating temperature range: -30°C to +70°C
• Abrasion and wear resistant
• Resistant to hydrocarbons, oils and most industrial chemicals
• UV resistant

The boom is washable with fresh water and fitted with stainless-steel fastenings.

Applications

• Estuaries
• Coastal waters
• Refineries
• Port areas
• Outfall canals
• Barges, tankers and inland vessels
• Wastewater treatment plants
• Rivers and lakes

Keywords
oil containment boom, floating boom, retention boom, skirt boom, containment barrier, pollution control boom.

Technical specifications

• Reference: BARC 2545R
• Model: Floating boom BARC 2545R
• Length: 25 metres
• Total height: 45 cm
• Freeboard (air draft): 15 cm
• Draft: 30 cm
• Float diameter: Ø 15 cm
• Weight: 80 kg
• Stored volume: 0.9 m³
• Colour: red
• Fabric: PVC-coated polyester 900 g/m² (hydrocarbon treated)
• Floats: closed-cell foam in compartments
• Ballast: galvanized marine-steel chain in sleeve
• Connection: end plates with bolts for joining (stainless fasteners)
• Accessories: integrated handling handles
• Optional: fixation and towing system, ref: BARC ANC1
• Operating temperature: -30°C to +70°C
• Maintenance: washable with water
