Oil anti-pollution boom BARC 3045R

floating

Description

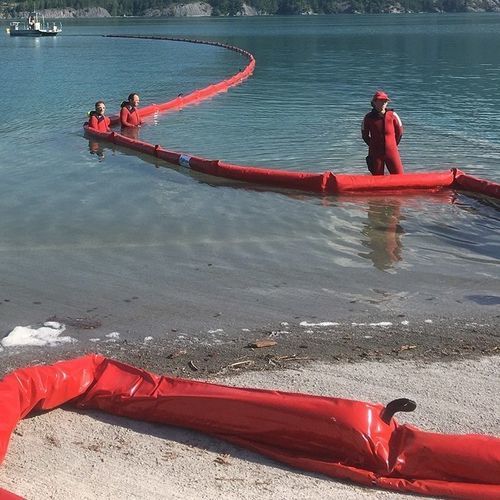

This floating containment boom is a PVC-coated polyester fabric (900 g/m²) barrier with closed-cell foam floats, designed for preventive and emergency control of oil spills and other waterborne pollutants. Suitable for use in ports, estuaries, coastal waters, rivers and lakes, it confines, diverts or closes off contaminated zones.

Construction and materials
The boom is made of sequential soft foam cylinders with closed cells inserted into sealed polyester fabric envelopes coated with hydrocarbon-resistant PVC (900 g/m²). A galvanized nautical steel ballast chain runs full length inside a protective sleeve. The segmented design with skirt allows the boom to follow surface movements. Each module has stainless steel connection plates and bolts at both ends and two handling grips for deployment. The boom is washable with water.

Dimensions and content

• Length: 30 metres
• Total height: 45 cm
• Freeboard (air draft): 15 cm
• Draft (submerged): 30 cm
• Weight: 96 kg
• Stored volume: 1 m³
• Colour: red
• Option: attachment and towing kit available (ref.: BARC ANC1)

Performance and resistance
The containment boom offers high resistance to the following stresses:

• Tear and torsion resistance
• Operating temperature range: -30°C to +70°C
• Wear and abrasion resistance
• Resistance to hydrocarbons, oils and most industrial chemicals
• UV resistance
• Stainless steel fasteners

Features

• Compartmentalised design to follow surface movements
• Galvanized ballast chain for stability
• Stainless steel plate-and-bolt connections for element assembly
• Handles for handling and deployment
• Washable with water

Applications

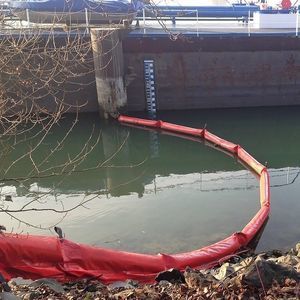

For preventive or curative use during water pollution incidents: estuaries, coastal waters, port areas, rivers and lakes. Can be installed at treatment plants, refineries, discharge canals, barges, tankers and other vessels.

Characteristics / technical specifications

• Reference: BARC 3045R
• Material: PVC-coated polyester fabric 900 g/m², closed-cell foam
• Length: 30 m
• Total height: 45 cm
• Freeboard: 15 cm
• Draft: 30 cm
• Weight: 96 kg
• Volume: 1 m³
• Ballast chain: galvanized nautical steel
• Fasteners: stainless steel
• Operating temperature: -30°C to +70°C
• Colour: red
