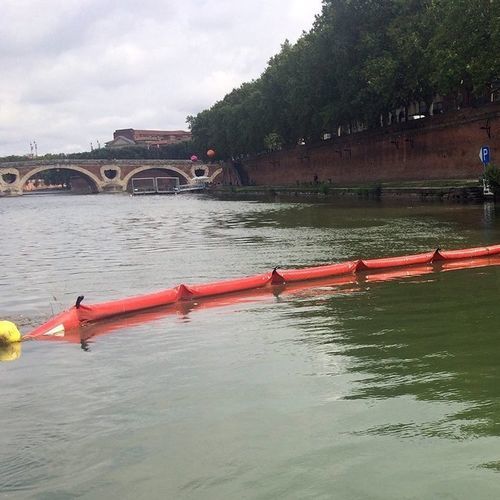

Oil anti-pollution boom BARC 1555R

floating

Presentation
Floating pollution containment boom made of PVC-coated polyester fabric (900 g/m²). Designed for preventive or corrective use to close off areas, contain or divert oil slicks and other pollutants on water surfaces (ports, estuaries, coastal waters, etc.). Also suitable for recovering macro-waste (plastic bags, bottles, floating debris, branches) and protecting swimming or boating zones.

Composition and construction
The boom consists of successive flexible closed-cell foam tubes inserted into watertight PVC-coated polyester sleeves (hydrocarbon-treated 900 g/m²). It is reinforced by a galvanized nautical steel ballast chain enclosed under the sleeve along the full length. The compartmentalized elements allow the boom with skirt to follow surface movements. Each boom is equipped at both ends with bolted connection plates and two handling handles for easier deployment.

Performance and resistance
The boom offers high durability:

• tear and torsion resistance
• operating temperature range -30°C to +70°C
• wear and abrasion resistance
• resistance to hydrocarbons, oils and most industrial chemicals
• UV resistance

Washable with water; bolting in stainless steel.

Dimensions
Length: 15 meters
Total height: 55 cm
Freeboard (air draft): 20 cm
Draft: 35 cm
Weight: 55 kg
Stowed volume: 0.8 m3
Color: red

Applications

• Estuary
• Coastal waters
• Refinery
• Port area
• Discharge channel
• Barge, tanker or towboat
• Wastewater treatment plant
• River and lake

Characteristics / technical specifications

• Reference: BARC 1555R
• Use: floating pollution containment boom
• Materials: PVC-coated polyester fabric 900 g/m², closed-cell foam tubes
• Reinforcement: galvanized nautical steel ballast chain under sleeve
• Fittings: bolted connection plates at ends, stainless steel bolting, handling handles
• Main dimensions: 15 m × 55 cm (total height)
• Freeboard / draft: 20 cm / 35 cm
• Weight: 55 kg
• Stowed volume: 0.8 m3
• Operating temperature: -30°C to +70°C
• Color: red
