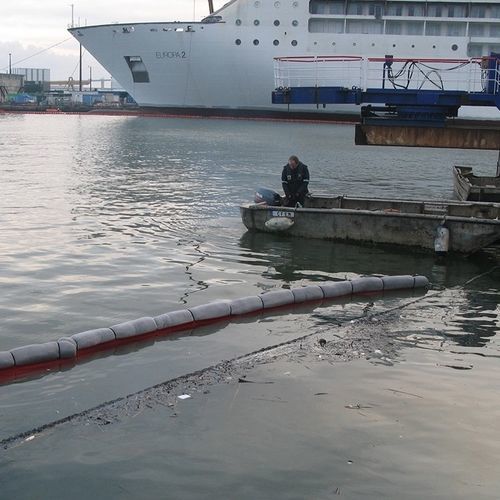

Oil anti-pollution boom BARH6PVC-1

floating

Summary
The BARH6PVC-1 absorbent containment boom features a reusable PVC skirt and is designed for use with LISORB cork absorbent elements (ref LISORB BH20600). LISORB cork is a natural, ecological absorbent, fully hydrophobic even after several weeks in water and resistant to surfactants. This boom combines the functions of a containment boom and an absorbent boom: it confines pollutants and enables hydrocarbon absorption.

Detailed description
The PVC skirt (650 g/m²) has a high-frequency welded upper hem and a lower sleeve fitted with a ballast chain. Cork absorbent elements attach to the skirt using bungee straps fixed by hooks and eyelets every 50 cm and are replaced when saturated with hydrocarbons. Multiple booms can be joined via a vertical junction system using 50 mm velcro across the full height, eyelets, TITAN turnbuckles and end hooks.

Key points

• Reusable PVC skirt 650 g/m²
• Compatible with LISORB cork absorbent booms BH20600
• Bungee straps and hooks/eyelets every 50 cm
• Ballast chain along the bottom of the skirt

Applications

• Containment of hydrocarbon pollution on the water surface and absorption of the pollutant
• Recovery of hydrocarbon sheens, floating debris and suspended vegetation
• Preventive use during marine works and operations

Product advantages

• Quick and simple replacement of saturated absorbent elements
• LISORB cork elements remain hydrophobic after several weeks in water and are resistant to surfactants
• Better long-term buoyancy compared with polypropylene booms that may eventually sink

Specifications / technical data

• Reference: BARH6PVC-1
• Approval: CEDRE N° AF-11-01
• Length: 6 metres
• Total height: 50 cm
• Freeboard (float): 20 cm (Ø 20 cm)
• Skirt draft: 30 cm
• Weight: 14 kg
• Colour: red
• Skirt material: PVC 650 g/m²
• Absorbent attachment: bungee straps with hooks and eyelets every 50 cm
• Absorption capacity (with cork elements): up to 144 litres per 6 m element
