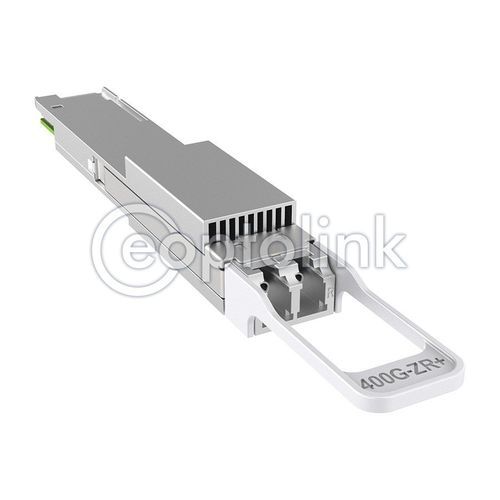

Fiber optic transceiver module QSFP56-DD 400G
Ethernet8-channelsingle-mode

fiber optic transceiver module
fiber optic transceiver module
Add to favorites
Compare this product


Characteristics

Network
for fiber optics, Ethernet
Number of channels
8-channel
Other characteristics
single-mode, QSFP

Description

The EOLD-164HG-B-XX5 QSFP-DD 400G ZR transceivers are compliant with the OIF 400G ZR standard and the EOLD-164HG-E-XX5 QSFP-DD 400G ZR+ transceiver is complaint to the OpenZR+ standard. The modules use a SiPho based optical engine and the latest generation for DSP for 400G coherent transmission. The QSFP-DD form-factor and CMIS5.1 support makes them suitable for use in transmission and Ethernet switching equipment. -Supports 425Gbps -Single 3.3V Power Supply -Power dissipation <21W (ZR+) -QSFP-DD MSA compliant -RoHS compliant -8x53.125Gbps (PAM4) electrical interface -Duplex LC connector -Commercial case temperature range of 0°C to 70°C -I2C interface with integrated Digital Diagnostic Monitoring
