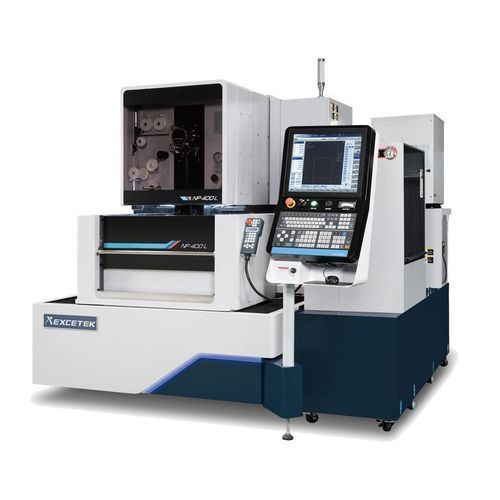

Wire-cut electrical discharge machine NP400L

wire EDMprecisionCNC

Short description
X/Y axes : 400 x 300 mm
U/V axes : 80 x 80 mm
Z axis : 220 mm

Highlights

• Comply with TUV CE conformity, both safety and desired design with easy operation.
• Power slider door design of high precision wire EDM to save installation space and light operation.

Specification
NP400L (Submerged Type) High Precision Wire EDM Machine
Max. work piece size: 750 x 550 x 215 mm
Wire diameter: 0.15 - 0.3 mm
Max. work piece weight: 500 kg
Number of axes controlled: XY axis linear motor, UV Z axis AC servo motor
Table travel of X Y: 400 x 300 mm
Maximum taper angle: ±22° / 80 mm with wide diamond guide and nozzle
U & V axis travel: 80 x 80 mm
Machine dimensions: 2260 x 2525 x 2100 mm
Z axis travel: 220 mm
Machine weight: 3050 kg

Dielectric Tank
Tank capacity: 650 L
Deionizer: auto
Paper filter: 2 pcs
Chiller unit: auto

Mechanical Structure - Key points
High Precision

• Smart Corner Control, Stable Discharge processing, Super Finish Circuit (SFC) provide more accuracy.

Efficiency

• DPM module, Precision mark control, Electrolysis Free (EF) generator system.

Cost effective

• Intelligent access control, Reduce Wire Consumption, Economic concerned price.

Intelligent Networking

• Remote monitor management, Controller connector, Portable device monitor.

Automation

• High speed Auto Wire Threading, Robo-arm transfer of Workpiece, Probe Auto Measurement and Correction.

Machine features

• Rigid U, V truss design
• Stainless steel worktable with hardness HRC 50°
• Machine casting designed based on FEA analysis to increase rigidity
• Machine base with extra wide design

Linear Shaft Motor Driver System
The machine provides constant temperature control to improve machining accuracy by reducing heat from the linear motor. Water circulation reduces temperature generated by the linear motor; high thrust, high efficiency and low energy consumption. Features include a 0.1 μm high-resolution digital ruler and controller for high-precision forming and ultra-fine finishing.

Improved Operability

• Class-leading ergonomic HMI panel, easy to operate
• Workpiece positioning function, maintenance and diagnosis information, technology data search function, graphical interface and useful functions

4-side Hardened Stainless Steel Table

• TUV certified for safety and metal design
• Power slider door design to save installation space and enable light operation

Auto Wire Threading

• 200 mm submerged threading capability; 400 mm thickness threading at break point
• High speed auto wire threading system: wire annealing and cutting ~10 sec; threading ~10 sec
• Reliable AWT design enabling continuous unmanned 24-hour operation; can thread from wire break point; water jet function enables threading of workpieces up to 500 mm

On-line measurement & Multiple workpiece machining

• On-line measurement and calibration before machining to reduce calibration time; automatic measurement calibrates reference point
• Direct on-line measurement after machining to avoid errors from dismount/mount
• Automatic compensation of 3D flatness and parallelism (AR), automatic reference point measurement, automatic progression to next workpiece

Cutting Technology (table)
Type | Without control | Using control
A | 0 | 0
B | 0 ~ -2 µm | -8 ~ -10 µm
C | 0 | 0
D | 0 ~ -2 µm | -8 ~ -10 µm

Accessory
Standard Accessories

• XY axis linear scale
• Brass wire x 1 spool
• AWT
• Clamping tool x 1 set
• Ion exchange resin x 10 L
• Vertical alignment jig x 1 set
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs

Options

• Clamping Beam
• W-Axis
• AVR 15 KVA
• Jumbo Feeder L-50A
• Transformer 15 KVA
• Short Message Service (SMS)
• Signal Tower
• Remote Monitor System
• Auto measurement system
• Super Finish Circuit

Caractéristiques / spécifications techniques

• Model: NP400L
• Table travel (X x Y): 400 x 300 mm
• U & V axis travel: 80 x 80 mm
• Z axis travel: 220 mm
• Max. work piece size: 750 x 550 x 215 mm
• Max. work piece weight: 500 kg
• Wire diameter: 0.15 - 0.3 mm
• Maximum taper angle: ±22° / 80 mm (with wide diamond guide and nozzle)
• Machine dimensions (W x D x H): 2260 x 2525 x 2100 mm
• Machine weight: 3050 kg
• Dielectric tank capacity: 650 L
• Deionizer: auto
• Paper filter: 2 pcs
• Chiller unit: auto
