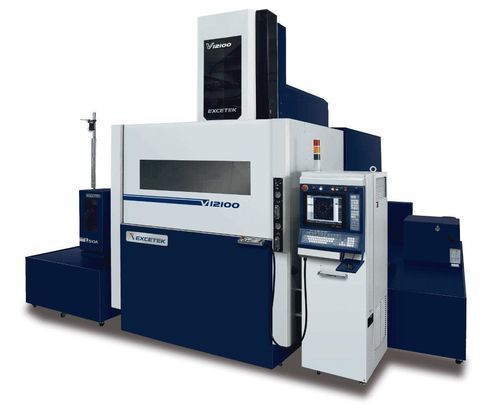

Wire-cut electrical discharge machine V12100

wire EDMhigh-accuracyprecision

Short description
X/Y axes: 1200 x 1000 mm
U/V axes: 260 x 260 mm
Z axis: 1000 mm

Overview
The V12100 is a V Series wire-cut electrical discharge machine (EDM) designed for large workpieces and heavy-duty machining. It features a rigid U/V truss, a stainless-steel worktable (HRC 50°), FEA-optimized casting and an extra-wide base. A water-cooled lower arm reduces thermal expansion to improve dimensional stability.

Mechanical Structure / Machine feature

• Rigid U/V truss design for structural stability
• Stainless-steel worktable with HRC 50° surface hardness
• FEA-based machine casting to increase rigidity
• Extra-wide machine base for vibration damping
• Water-cooled lower arm to minimize thermal deformation

Precision & Accuracy
Extended spacing of linear guideways, cryogenic-treated C1-class ball screw and two-side supported high-resolution AC servomotors provide micro-step positioning down to 1 µm. Optional closed-loop linear scales and laser calibration are available for pitch error compensation.

Intelligent machining mode

• High-frequency calculation and pulse control with embedded processing to reduce control load
• RS-485 network for module communication
• CRC data verification functions
• ASIC-based circuits for stable performance
• Watchdog functions for system protection
• Real-time sparking feedback for consistent erosion

Automatic Wire Threading (AWT)

• Threading at break point with annealing to improve wire straightness
• Submerged threading supported without draining/refilling the tank
• Multi-hole machining: automatically skips and logs failed holes for later resumption
• AWT Monitor and AWT Result Monitor for threading status
• Water-jet assisted threading for tall workpieces (up to 500 mm thickness)

Control / Graphical Interface
Industrial PC CNC with 15" LCD touch screen, keyboard and mouse. Interfaces: LAN, USB, RS-232. Memory: 512 MB CF card. Minimum command unit: 0.0001 mm. Programmable range: ±9999.9999 mm. Units switchable between Metric and Inch. Features: machining watchdog, NC optimization, cutting database, icons and parameter/maintenance assistance, remote control (standard accessory).

Surface Finish
Optional Super Finish Circuit (high frequency) can achieve Ra < 0.2 µm in a single cut with four skims (demonstrated on SKD-11, 30 mm thickness).

Accessories
Standard Accessories

• Ion exchange resin x 10 L
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs
• Brass wire x 1 spool
• Clamping tool x 1 set
• Vertical alignment jig x 1 set

Options

• XY axis linear scale
• W-Axis
• Clamping Beam
• Jumbo Feeder L-50A
• AWT additional features
• Double Door
• AVR 15KVA
• Transformer 15KVA
• Short Message Service (SMS)
• Signal Tower
• Remote Monitor System
• Super Finish Circuit

Technical specifications

• Model: V12100
• Max. workpiece size: 1650 x 1400 x 1000 mm
• Max. workpiece weight: 5500 kg
• Travel of X/Y axes: 1200 x 1000 mm
• Travel of U/V axes: 260 x 260 mm
• Travel of Z axis: 1000 mm
• Wire diameter: 0.2 ~ 0.33 mm
• Number of axes controlled: 5-axis AC servo motor
• Max taper angle: ±30° / 100 mm with wide diamond guide and nozzle
• Machine size: 5010 x 4285 x 3890 mm
• Machine weight: 12950 kg
• Water tank capacity: 4700 L
