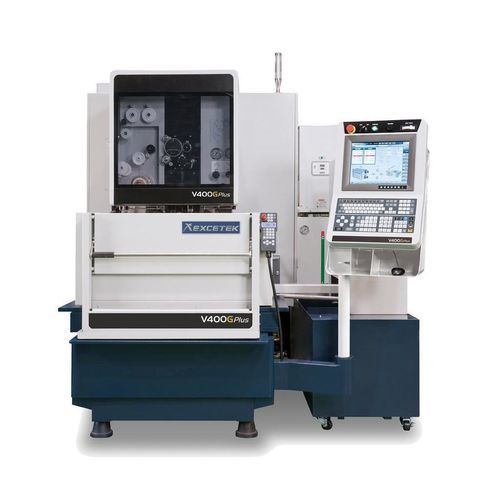

Wire-cut electrical discharge machine V400G Plus

wire EDMprecisionCNC

Short description
V400G Plus wire-cut EDM machine with X/Y travel 400 x 300 mm, U/V 80 x 80 mm and Z travel 220 mm (submerged height 210 mm). 5-axis AC servo control, wire diameter support 0.15–0.3 mm, designed for submerged and continuous unmanned operation.

Overview
The V400G Plus is part of the G Plus Series. It provides high-precision wire electrical discharge machining (EDM) with intelligent machining modes, automatic wire threading (AWT) and energy-efficient operation. The machine improves corner control, reduces wire marks and enhances surface finish for demanding toolroom and production applications.

Mechanical Structure

• Rigid U and V truss design for structural stability
• Stainless-steel worktable with hardness HRC 50
• Casting design validated by FEA to increase rigidity
• Machine base with extra-wide support for improved stiffness
• Water-cooled lower arm to limit thermal expansion and maintain accuracy
• Rugged cast-iron structure for long-term dimensional stability

Smart & Easy

• Multiple cutting technologies, user-friendly interface and remote monitoring for simplified production management

High Speed Reliable AWT

• High-speed automatic wire threading for slot and submerged threading to enable unmanned multi-model machining

Enhance Machining Performance

• DPM module and discharging stabilizer for stable cutting
• Advanced corner-control strategy and manual radius machining
• Reduced wire marks during approach cutting
• Micron finish circuit for improved surface quality

Power Saving and Low Cost Operation

• Intelligent power management to reduce energy consumption
• Wire consumption compensation to optimize operating costs
• Easy maintenance design to lower service costs

Intelligent machining mode
Ergonomic HMI offers workpiece positioning, maintenance and diagnostic information, technology data search and a graphical interface for setup and monitoring.

Automatic Wire Threading

• Continuous unmanned day/night machining with automatic re-thread at ideal break points
• Annealing function improves wire straightness during threading; reliable threading at break point without returning to start hole
• Submerged wire threading executable without draining the tank
• Multi-hole machining: system records and skips unthreadable holes and automatically recalls them later
• Water-jet-assisted threading available for tall or submerged workpieces

Cutting Technology

• Type A | Without control: 0 | Using control: 0
• Type B | Without control: 0 ~ -2 µm | Using control: -8 ~ -10 µm
• Type C | Without control: 0 | Using control: 0
• Type D | Without control: 0 ~ -2 µm | Using control: -8 ~ -10 µm

Machine feature

• Maximum taper angle ±22° / 80 mm with wide diamond guide and nozzle
• 5-axis AC servo motor control
• Wire diameter support: 0.15 - 0.3 mm

Accessories
Standard Accessories

• Ion exchange resin x 10 L
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs
• Brass wire x 1 spool
• Clamping tool x 1 set
• Vertical alignment jig x 1 set

Options

• XY axis linear scale
• W-Axis
• Clamping Beam
• Jumbo Feeder L-50A
• AWT (Automatic Wire Threading)
• Double Door
• AVR 15KVA
• Power Slide Door (only V650G & V850G)
• Transformer 15KVA
• Signal Tower
• Short Message Service (SMS)
• Remote Monitor System
• Super Finish Circuit

Technical specifications

• Model: V400G Plus
• Max. workpiece size: 750 x 550 x 215 mm
• Max. workpiece weight: 500 kg
• Travel of X/Y axes: 400 x 300 mm
• Travel of U/V axes: 80 x 80 mm
• Travel of Z axis: 220 mm (Submerged height 210 mm)
• Wire diameter: 0.15 - 0.3 mm
• Number of axes controlled: 5-axis AC servo motor
• Maximum taper angle: ±22° / 80 mm (with wide diamond guide and nozzle)
• Machine size: 2100 x 2230 x 2175 mm
• Machine weight: 2700 kg
• Water tank capacity: 650 L
