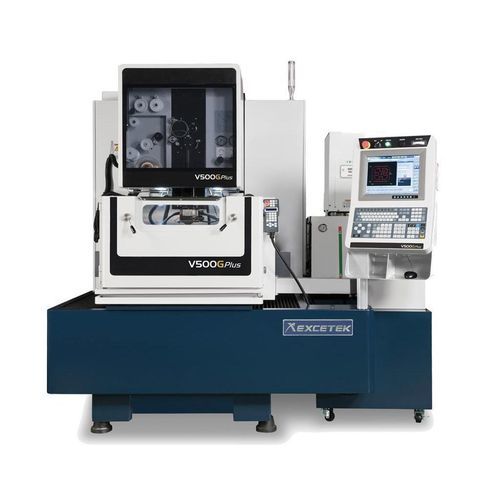

Wire electrical discharge machine V500G Pluswire EDMprecisionCNC
Add to favorites
Compare this product
Characteristics
- Type
- wire, wire EDM
- Other characteristics
- CNC, precision
- X travel
500 mm
(19.69 in)- Y travel
300 mm
(11.81 in)- Z travel
260 mm
(10.24 in)
Description
Short description
Features
Machine features
Automatic Wire Threading (AWT) & Threading functions
Cutting technology (examples)
Accessory (standard & options)
Technical specifications
- Wire EDM machine for precision machining of conductive materials. X/Y travel 500 x 300 mm, U/V 120 x 120 mm, Z 260 mm (submerged height 220 mm). 5-axis control with automatic wire threading capability.
Features
- Multiple cutting technologies and a user-friendly interface with remote monitoring capability.
- Automatic Wire Threading (AWT) for reliable high-speed unattended operation, including threading in slots and under water.
- Machining enhancement functions: DPM module, discharging stabilizer, corner control strategy, manual radius machining, reduced wire marks and fine surface finish circuit.
- Energy management and wire compensation to reduce operating cost and simplify maintenance.
Machine features
- Rigid U/V truss structure.
- Stainless steel worktable, hardness HRC 50°.
- Cast machine components designed with FEA to increase rigidity.
- Extra-wide machine base for stability.
- Water-cooled lower arm to limit thermal expansion and improve accuracy.
- Rugged cast iron frame as precision foundation.
Automatic Wire Threading (AWT) & Threading functions
- Continuous unmanned day/night machining with reliable break-point automatic wire threading.
- Annealing during threading to improve wire straightness; high-reliability threading at break points without returning to start hole.
- Submerged threading: execute threading during submerged machining without draining the tank.
- Multi-hole machining: failed rethreading is skipped and recorded for later completion.
- Water-jet assist for threading tall workpieces or submerged conditions.
- Examples: 100 mm thickness — anneal & cut: 10 s; threading: 10 s. 800 mm thickness — threading under water at break point.
Cutting technology (examples)
- Type A: Without control 0 | Using control 0
- Type B: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm
- Type C: Without control 0 | Using control 0
- Type D: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm
Accessory (standard & options)
- Standard: Ion exchange resin 10 L; Paper filter x2; Diamond guide x2; Upper/lower flushing nozzle sets x2; Energizing plates x2; Brass wire x1 spool; Clamping tool set; Vertical alignment jig.
- Options: XY linear scale; W-axis; Clamping beam; Jumbo feeder L-50A; AWT; Double door; AVR 15 kVA; Power slide door (only V650G & V850G); Transformer 15 kVA; Signal tower; SMS; Remote monitor system; Super finish circuit.
Technical specifications
- Model: V500G Plus
- Brand: Excetek
- Max workpiece size: 850 x 600 x 255 mm
- Max workpiece weight: 600 kg
- X/Y travel: 500 x 300 mm
- U/V travel: 120 x 120 mm
- Z travel: 260 mm (submerged height 220 mm)
- Wire diameter: 0.15 - 0.3 mm
- Controlled axes: 5-axis AC servo
- Maximum taper: ±26° / 100 mm with wide diamond guide and nozzle
- Machine dimensions: 2215 x 2480 x 2205 mm
- Machine weight: 3500 kg
- Water tank capacity: 750 L
