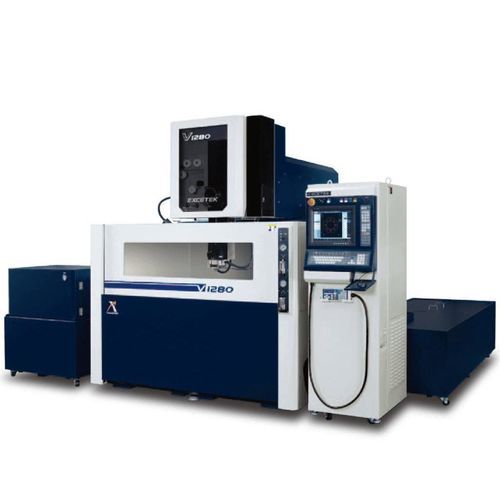

Wire EDM electrical discharge machine V1280

high-accuracyprecision

Product overview
X/Y axes: 1200 x 800 mm
U/V axes: 260 x 260 mm
Z axis: 500 mm (options 600 / 800 mm)
Model: V1280 - Z500/Z600/Z800 CNC wire EDM machine
Max. workpiece size: 1650 x 1200 x 495 mm (option 595/795 mm)
Wire diameter: 0.2 - 0.33 mm
Max. workpiece weight: 4000 kg
Axes controlled: 5-axis AC servo motor

Specifications

• Table travel (X x Y): 1200 x 800 mm
• U & V axes travel: 260 x 260 mm
• Z axis travel: 500 mm (options 600 / 800 mm)
• Maximum taper angle: ±30°/100 mm (with wide diamond guide and nozzle)
• Max. workpiece size: 1650 x 1200 x 495 mm (option 595/795 mm)
• Max. workpiece weight: 4000 kg
• Wire diameter supported: 0.2 - 0.33 mm
• Axes controlled: 5-axis AC servo motor
• Machine sizes and weights: Z500: 4400 x 3725 x 2585 mm / 10600 kg; Z600: 4510 x 3765 x 2890 mm / 10850 kg; Z800: weight 11600 kg
• Water tank capacity: Z500: 3000 L; Z600: 3300 L; Z800: 4000 L

Mechanical structure

• Rigid U/V truss design
• Stainless steel worktable with hardness HRC 50°
• Machine casting designed based on FEA analysis to increase rigidity
• Machine base with extra wide design
• Water-cooled lower arm to prevent thermal expansion; rib locations designed by FEA to ensure thermal balance and optimized rigidity

Precision and motion

• Extended distance between linear guide ways
• Cryogenic treatment of C1 class ball screw
• Ball screw supported on both ends and high-resolution AC servomotor achieving micro-step accuracy up to 1 µm
• Laser calibration and pitch error compensation
• Closed-loop linear scale (option)
• Rugged cast iron machine structure as foundation of precision

Intelligent machining mode

• High-frequency calculation and pulse control with embedded system to reduce control load
• RS-485 network for data transmission between module groups
• CRC functions to verify received data integrity
• ASIC chip to increase circuit stability
• Watchdog functions for system self-protection
• Real-time feedback of sparking information to stabilize spark erosion

Automatic wire threading

• Threading at break point: annealing improves wire straightness; threading at break point during machining with near 100% reliability without return to start hole
• Submerged wire threading: can be executed during submerged machining without draining/refilling the tank
• Multi-hole machining function: if rethreading fails, system skips current hole, records location and recalls it later to complete the cut
• Threading with water jet for tall workpieces; supports threading up to 500 mm thickness enabling continuous unmanned operation

Control

• Graphical interface; EXCETEK V Series control (W6)
• CNC device: Industrial PC
• CPU: Pentium 64-bit high-speed CPU
• Operation interface: 15" LCD touch screen, keyboard, mouse
• Input interfaces: LAN, USB, Floppy, RS-232
• Memory capacity: 512 MB CF card
• Min. command unit: 0.0001 mm
• Max. programmable dimension: ±9999.9999 mm
• Units: Metric / Inch switchable
• Remote control: standard accessory

Electrical and machining functions

• Electrolysis Free (EF) AC power generator for improved cutting performance
• Short-circuit solution: special discharge circuit to eliminate short circuit during threading misalignment and improve machining efficiency
• RTS (Real Time Sparking): fast feedback of ineffective discharges and automatic condition adjustment to improve cutting efficiency

Surface finish
Super Finish Circuit (option): high-frequency surface finish technology capable of achieving roughness Ra < 0.2 µm in a single cut with 4 skims on steels such as SKD-11 (example: 30 mm thickness).

Accessories

Standard accessories

• Ion exchange resin x 10 L
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs
• Brass wire x 1 spool
• Clamping tool x 1 set
• Vertical alignment jig x 1 set

Options

• XY axis linear scale
• W-Axis
• Clamping beam
• Jumbo feeder L-50A
• AWT (Automatic Wire Threading)
• Double door
• AVR 15KVA
• Transformer 15KVA
• Short Message Service (SMS)
• Signal tower
• Remote monitor system
• Super Finish Circuit

Technical specifications

• Model: V1280 (Z500 / Z600 / Z800 variations)
• Table travel (X x Y): 1200 x 800 mm
• U & V axes travel: 260 x 260 mm
• Z axis travel: 500 mm (options 600 / 800 mm)
• Max. workpiece size: 1650 x 1200 x 495 mm (option 595/795 mm)
• Max. workpiece weight: 4000 kg
• Wire diameter supported: 0.2 - 0.33 mm
• Axes controlled: 5-axis AC servo motor
• Machine sizes and weights: Z500: 4400 x 3725 x 2585 mm / 10600 kg; Z600: 4510 x 3765 x 2890 mm / 10850 kg; Z800: 11600 kg
• Water tank capacity: Z500: 3000 L; Z600: 3300 L; Z800: 4000 L
• Maximum taper angle: ±30°/100 mm (with wide diamond guide and nozzle)
