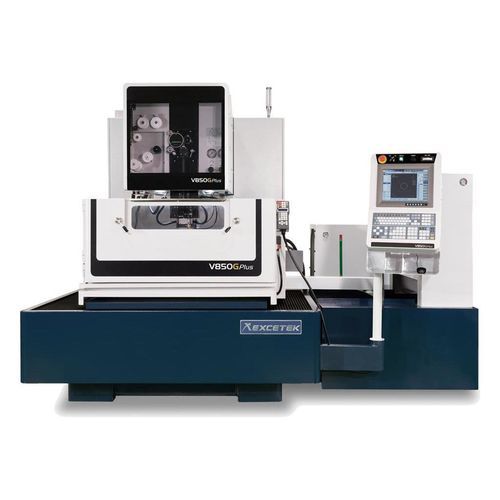

Wire-cut electrical discharge machine V850G Plus

wire EDMCNC

Short description
Wire-cut EDM machine for precision cutting with X/Y axes 800 x 500 mm, U/V 160 x 160 mm, Z 350 mm (submerged height 310 mm).

Overview

• G Plus Series wire-cut EDM designed for reliable unattended cutting and advanced machining strategies.

Features

• Smart & Easy: multiple cutting technologies, intuitive interface, remote access and convenient operation functions.
• High-speed reliable AWT: automatic wire threading for slot and submerged threading, reducing operator intervention for multi-model production.
• Enhanced machining performance: DPM module, discharging stabilizer, improved corner control strategies, manual radius machining and new micron finish circuit to minimize wire marks.
• Power saving and low operating cost: intelligent power management, wire consumption compensation and simplified maintenance.

Mechanical Structure

• Rigid U/V truss design.
• Stainless steel worktable hardened to HRC 50°.
• Machine casting optimized by FEA for increased rigidity.
• Extra-wide machine base design.
• Water-cooled lower arm to limit thermal expansion and improve accuracy.
• Rugged cast iron structure as precision foundation.

Intelligent machining mode

• Graphical HMI panel with ergonomic operation.
• Workpiece positioning functions.
• Maintenance and diagnostics information.
• Technology data search and operation assistance functions.

Automatic Wire Threading

• Continuous unmanned day/night operation with automatic threading at ideal break points.
• Annealing function improves wire straightness during threading; supports threading at break point without returning to start hole.
• Submerged threading allows threading during submerged machining without draining tank.
• Multi-hole machining: system skips and records failed rethread holes for later recall.
• Water-jet assisted threading for tall workpieces or submerged machining.
• Typical cycle examples: annealing and cutting ~10 s; threading ~10 s (workpiece thickness 100 mm). Threading under water at break point supported for large thickness (example: 800 mm).

Cutting Technology

• Type A: Without control 0 | Using control 0
• Type B: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm
• Type C: Without control 0 | Using control 0
• Type D: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm

Remote Monitor System

• Remote monitoring to observe machine status and supervise machining processes.

Machine feature (high level)

• Maximum taper control ±30°/100 mm with wide diamond guide and nozzle.
• Designs to improve stability and rigidity for precision and long-term reliability.

Accessories
Standard Accessories

• Ion exchange resin x 10 L
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs
• Brass wire x 1 spool
• Clamping tool x 1 set
• Vertical alignment jig x 1 set

Options

• XY axis linear scale
• W-Axis
• Clamping Beam
• Jumbo Feeder L-50A
• AWT (Automatic Wire Threading)
• Double Door
• AVR 15KVA
• Power Slide Door (Only V650G & V850G)
• Transformer 15KVA
• Signal Tower
• Short Message Service (SMS)
• Remote Monitor System
• Super Finish Circuit

Technical specifications

• Commercial name: V850G Plus
• Max. workpiece size: 1100 x 850 x 345 mm
• Max. workpiece weight: 1100 kg
• Travel of X/Y axes: 800 x 500 mm
• Travel of U/V axes: 160 x 160 mm
• Travel of Z axis: 350 mm (Submerged height 310 mm)
• Wire diameter: 0.15 - 0.3 mm
• Number of axes controlled: 5 Axis AC servo motor
• Maximum taper angle: ±30° / 100 mm with wide diamond guide and nozzle
• Machine size: 2840 x 2900 x 2290 mm
• Machine weight: 5000 kg
• Water tank capacity: 1050 L
