Short description

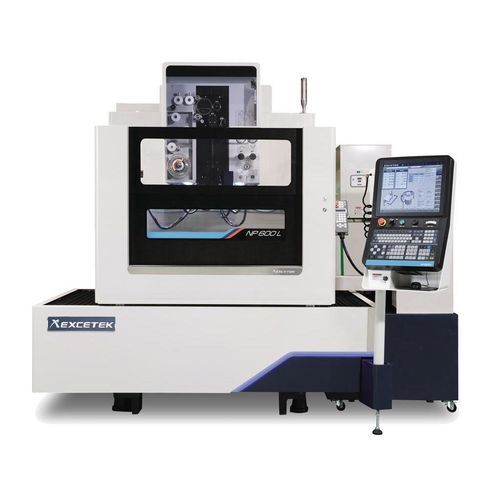

Submerged wire-cut EDM machine NP600L CE. Table travel X/Y: 600 × 400 mm. U/V axes travel: 160 × 160 mm. Optional Z axis travel: 410 mm.

Overview

• TUV CE conformity for safety and compliance.
• Power slider front door to reduce installation footprint and enable light operation.

Specification (Submerged Type)

• Model: NP600L CE (Submerged Type)
• Max. workpiece size: 1000 × 700 × 345 mm
• Wire diameter: 0.15–0.3 mm
• Max. workpiece weight: 800 kg
• Axes control: XY linear motor; U/V and Z axes AC servo motor
• Table travel (X × Y): 600 × 400 mm
• U & V axis travel: 160 × 160 mm
• Z axis travel: 410 mm (option)
• Maximum taper angle: ±30° / 100 mm (with wide diamond guide and nozzle)
• Machine dimensions (L × W × H): 2670 × 2965 × 2300 mm
• Machine weight: 4700 kg

Dielectric Tank

• Tank capacity: 900 L
• Deionizer: automatic
• Paper filter: 2 pcs
• Chiller unit: automatic

Features

• High precision
  • Smart corner control
  • Stable discharge processing
  • Super Finish Circuit (SFC) for improved accuracy
• Efficiency
  • DPM module
  • Precision mark control
  • Electrolysis Free (EF) generator system
• Cost effectiveness
  • Intelligent access control
  • Reduced wire consumption
  • Competitive pricing
• Intelligent networking
  • Remote monitoring management
  • Controller connectivity
  • Portable device monitoring
• Automation
  • High-speed Auto Wire Threading (AWT)
  • Robo-arm transfer of workpiece
  • Probe auto measurement and correction

Mechanical & Machine Features

• Rigid U/V truss design
• Stainless steel worktable, hardness HRC 50°
• Casting design validated by FEA for increased rigidity
• Extra-wide machine base for stability

Linear Shaft Motor Driver System
The linear motor system includes active temperature control via water circulation to minimize thermal drift. A 0.1 μm high-resolution digital ruler and controller enable high-precision positioning and ultra-fine finishing while maintaining high thrust and energy efficiency.

Improved Operability

• TUV-certified safety and metal exterior design
• Power slider door saves space and allows easier operation

Auto Wire Threading (AWT) & Threading Performance

• High-speed AWT for workpiece thickness up to 100 mm
• Wire annealing and cutting: 10 s
• Threading time: 10 s
• 200 mm submerged threading capability
• 400 mm thickness threading at break point
• Water jet function enables threading for workpieces up to 500 mm

On-line Measurement & Automation
On-line measurement and calibration before machining reduce setup time. Macro commands automate reference-point measurement and calibration to improve machining accuracy. Direct on-table measurement after machining avoids errors from dismount/mount cycles. Multi-workpiece machining supports automatic 3D flatness compensation, parallelism compensation (AR), automatic reference measurement and sequential processing.

Cutting Technology (example table)
Type | Without control | Using control
A | 0 | 0
B | 0 ~ -2 µm | -8 ~ -10 µm
C | 0 | 0
D | 0 ~ -2 µm | -8 ~ -10 µm

Accessories
Standard accessories

• XY axis linear scale
• Brass wire × 1 spool
• AWT
• Clamping tool × 1 set
• Ion exchange resin × 10 L
• Vertical alignment jig × 1 set
• Paper filter × 2 pcs
• Diamond guide × 2 pcs
• Upper and lower flushing nozzle × 2 sets
• Energizing plates × 2 pcs

Options

• Clamping beam
• W-axis
• AVR 15 KVA
• Jumbo Feeder L-50A
• Transformer 15 KVA
• Auto front door (Only NP600L)
• Short Message Service (SMS)
• Signal tower
• Remote monitor system
• Auto measurement system
• Super Finish Circuit

Technical specifications

• Model: NP600L CE (Submerged Type)
• Max workpiece size: 1000 × 700 × 345 mm
• Table travel (X × Y): 600 × 400 mm
• U & V axis travel: 160 × 160 mm
• Z axis travel: 410 mm (option)
• Wire diameter: 0.15–0.3 mm
• Max workpiece weight: 800 kg
• Axes controlled: XY linear motor; U/V Z axis AC servo motor
• Maximum taper angle: ±30° / 100 mm (with wide diamond guide and nozzle)
• Machine dimensions (L × W × H): 2670 × 2965 × 2300 mm
• Machine weight: 4700 kg
• Dielectric tank capacity: 900 L
• Deionizer: automatic
• Paper filter: 2 pcs
• Chiller unit: automatic
