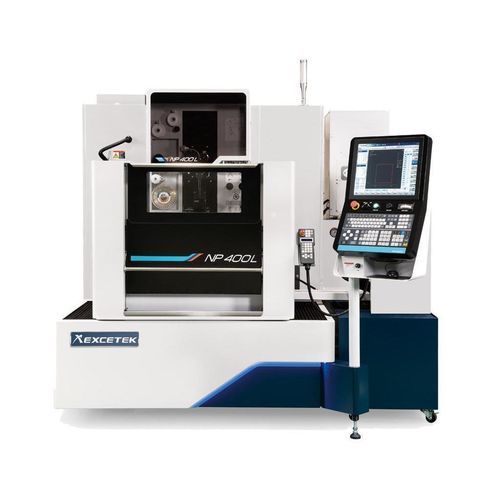

Wire-cut electrical discharge machine NP400L CE

wire EDMprecision

Product overview
Precision wire-cut EDM machine NP400L CE, submerged type, designed for accurate contouring and fine finishing of metallic workpieces. Main axes travel: X/Y 400 x 300 mm; U/V 80 x 80 mm; Z 220 mm. Suitable for unattended and multi-part production.

Highlights

• TÜV CE conformity for machine safety and design compliance.
• Power slider door to reduce installation footprint and simplify access.

Key features

• Precision
  • Smart corner control, stable discharge processing and Super Finish Circuit (SFC) for improved dimensional accuracy and surface finish.
• Efficiency
  • DPM module, precision mark control and Electrolysis Free (EF) generator system to optimise cutting performance.
• Cost effectiveness
  • Intelligent access control and wire consumption reduction functions to lower operating costs.
• Intelligent networking
  • Remote monitoring, controller connectivity and portable device support for process supervision.
• Automation
  • High-speed Auto Wire Threading, robotic workpiece transfer and probe auto measurement and correction for reduced setup time.

Linear Shaft Motor Driver System
Temperature-controlled linear shaft motor with water circulation to minimise thermal drift and improve machining accuracy. Includes 0.1 µm high-resolution digital scales and controller for precise positioning and ultra-fine finishing.

Auto Wire Threading (AWT)

• 200 mm submerged threading capability.
• Threading at 400 mm thickness from break point.
• High-speed AWT cycle example: for 100 mm workpiece thickness - wire annealing and cutting: 10 s; threading: 10 s.
• Reliable AWT supports continuous unmanned operation; water-jet assist enables threading on workpieces up to 500 mm.

On-line measurement & Multi-workpiece machining
Integrated on-table measurement and calibration reduce setup errors and cycle time. Macro commands automate reference point measurement and calibration; direct on-table checks avoid dismounting-related errors. Supports automatic 3D flatness and parallelism compensation and automatic transition to next part.

Cutting Technology (table)

• Type A: Without control: 0 ; Using control: 0
• Type B: Without control: 0 ~ -2 µm ; Using control: -8 ~ -10 µm
• Type C: Without control: 0 ; Using control: 0
• Type D: Without control: 0 ~ -2 µm ; Using control: -8 ~ -10 µm

Machine feature details

• Rigid U/V truss structural design for improved stiffness.
• Stainless steel worktable hardened to approx. HRC 50°.
• Machine casting and frame optimized by FEA for increased rigidity.
• Machine base with extra wide support area for stability.

Improved operability

• Graphical HMI with ergonomic layout for straightforward operation.
• Workpiece positioning tools, maintenance and diagnostics, and technology data search available in the interface.
• Four-side hardened stainless steel table; TÜV certified safety features; power slider door for compact installation.

Accessory
Standard Accessories

• XY axis linear scale
• Brass wire x 1 spool
• AWT (Auto Wire Threading)
• Clamping tool x 1 set
• Ion exchange resin x 10 L
• Vertical alignment jig x 1 set
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs

Options

• Clamping beam
• W-axis
• AVR 15 KVA
• Jumbo feeder L-50A
• Transformer 15 KVA
• Short Message Service (SMS)
• Signal tower
• Remote monitor system
• Auto measurement system
• Super Finish Circuit

Specifications

• Model: NP400L CE (Submerged Type)
• Max. workpiece size: 750 x 550 x 215 mm
• Wire diameter: 0.15 - 0.3 mm
• Max. workpiece weight: 500 kg
• Axes controlled: XY axis linear motor; U, V, Z axis AC servo motor
• Table travel (X Y): 400 x 300 mm
• Maximum taper angle: ±22° / 80 mm with wide diamond guide and nozzle
• U & V axis travel: 80 x 80 mm
• Machine dimensions (L x W x H): 2260 x 2525 x 2100 mm
• Z axis travel: 220 mm
• Machine weight: 3050 kg
• Dielectric tank capacity: 650 L
• Deionizer: auto
• Paper filter: 2 pcs
• Chiller unit: auto
