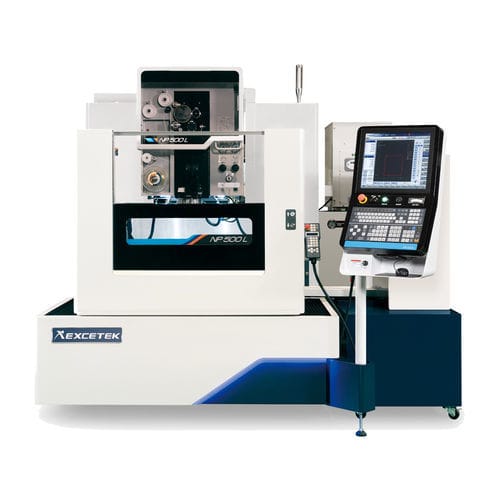

Wire-cut electrical discharge machine NP500L CE

wire EDMprecisionCNC

Product Overview
The NP500L CE is a submerged-type wire EDM (electro-discharge machining) designed for precision contour cutting of metal components with user-friendly operation and TUV CE conformity.

Basic machine travel

• X/Y axes: 500 x 300 mm
• U/V axes: 120 x 120 mm
• Z axis: 310 mm

Features

• High precision: Smart Corner Control, Stable Discharge processing, Super Finish Circuit (SFC) for improved accuracy and surface finish.
• Efficiency: DPM module, Precision mark control, Electrolysis Free (EF) generator system to optimize cutting cycles.
• Cost control: Intelligent access control, reduced wire consumption and economical operation.
• Connectivity: Remote monitoring and management, controller connector and portable device monitoring.
• Automation: High-speed Auto Wire Threading (AWT), robo-arm workpiece transfer, probe auto measurement and correction.
• Robust mechanics: Rigid U/V truss design; hardened stainless-steel worktable (HRC 50°); FEA-designed castings and extra-wide machine base for stability.

Auto Wire Threading

• High-speed AWT: wire annealing and cutting ~10 s; threading ~10 s.
• Submerged threading up to 200 mm; threading from break point through 400 mm thickness; supports continuous unmanned 24-hour operation; water-jet assisted threading up to 500 mm.

On-line measurement & Automation

• On-line measurement and calibration before machining to reduce setup time; automatic reference point calibration via macro commands.
• Multi-workpiece machining: automatic 3D flatness and parallelism compensation (AR), auto reference point measurement, AWT and automatic continuation to next workpiece.
• Automatic measurement functions: inclination measurement, AR correction, reference point calibration, on-table post-process measurement to avoid remount errors; exportable measurement reports.

Cutting Technology (table)

• Type A: Without control 0 | Using control 0
• Type B: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm
• Type C: Without control 0 | Using control 0
• Type D: Without control 0 ~ -2 µm | Using control -8 ~ -10 µm

Standard Accessories

• XY axis linear scale
• Brass wire x 1 spool
• AWT (Auto Wire Threading)
• Clamping tool x 1 set
• Ion exchange resin x 10 L
• Vertical alignment jig x 1 set
• Paper filter x 2 pcs
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
• Energizing plates x 2 pcs

Options

• Clamping Beam
• W-Axis
• AVR 15 KVA
• Jumbo Feeder L-50A
• Transformer 15 KVA
• Short Message Service (SMS)
• Signal Tower
• Remote Monitor System
• Auto measurement system
• Super Finish Circuit

Dielectric Tank

• Tank capacity: 750 L
• Deionizer: auto
• Paper filter: 2 pcs
• Chiller unit: auto

Notes on Control & Usability

• Graphical HMI panel with ergonomic design; technology data search, maintenance and diagnosis information, and workpiece positioning functions.
• Linear shaft motor driver with water circulation for temperature control; 0.1 μm high-resolution digital scale and controller for ultra-fine finishing.
• 4-side hardened stainless-steel table with TUV certification; power slider door to reduce installation footprint and ease operation.

Technical specifications

• Model: NP500L CE (Submerged Type)
• Max. workpiece size: 850 x 550 x 300 mm
• Wire diameter: 0.15 - 0.3 mm
• Max. workpiece weight: 600 kg
• Axes: XY axis linear motor; U/V/Z axis AC servo (Z axis AC servo motor)
• Table travel (X Y): 500 x 300 mm
• Maximum taper angle: ±26° / 100 mm with wide diamond guide and nozzle
• U & V axis travel: 120 x 120 mm
• Machine dimensions: 2590 x 2575 x 2165 mm
• Z axis travel: 310 mm
• Machine weight: 3350 kg
• Dielectric tank capacity: 750 L
• Deionizer: auto
• Paper filters: 2 pcs
• Chiller unit: auto
