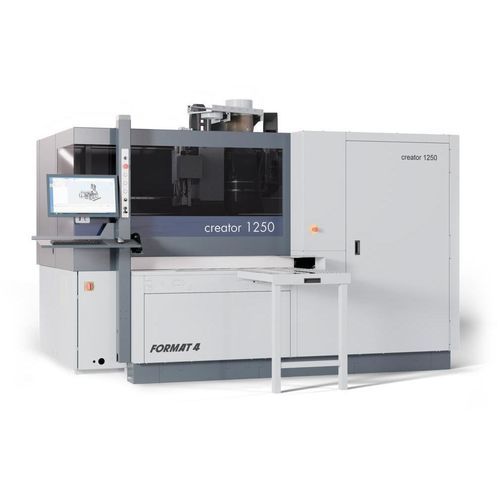

Vertical machining center Creator 1250

for woodHSK F63milling

Format4 Creator 1250 – compact CNC machining center for panel processing
The Format4 Creator 1250 combines a compact footprint with a high-performance main spindle (up to 12 kW), configurable drilling heads and a 17-position linear toolchanger for short changeover times. The machine processes panels up to 6 m length, 1250 mm width and 80 mm thickness. Horizontal workpiece transport and height-adjustable supports enable ergonomic handling and single-operator loading. Optional roller and X-axis extensions increase flexibility for long panels.

Highlights

• Tailor-made financing solutions
• Continuous industrial operation capability
• Customer-specific production solutions
• Solid design with premium components
• Multiple specification packages with high-tech options
• Complete engineering precision
• High user comfort
• Award-winning design
• Quality and precision from Austria
• Focus on productivity and service
• Automation and networked workshop readiness
• Integrated software and machine package

X-axis extension (option)
Optional extension of the X-axis up to 3600 mm (standard 1470 mm) reduces changeover cycles for medium and long workpieces and increases throughput per shift.

Two-clamp belt feeder (option) — key points
Two independent servo-driven clamps enable dynamic, uninterrupted workpiece movement except at clamp contact.

• Precision ball bearings in clamps act as reference points for edge-friendly transport
• 4-sided formatting with automatic chip removal on clamp side
• No manual adjustment required for clamp-side formatting
• Pneumatic stroke release on opening prevents slipping during positioning and re-gripping
• Positioning speed up to 90 m/min for fast changeover
• Pneumatic clamping force adjustable via control valve with pressure gauge

Dowel aggregate (X direction) — details
The dowel aggregate for X consists of two units: an insertion unit on the drill head and vibrator plus glue/water tanks inside the housing. Dowel insertion in X direction is possible; supported dowel width 8 mm; permitted lengths 20, 25, 30, 35 or 40 mm (tolerance ±0.2 mm). Swelling dowels (water-activated) supported; storage and humidity affect results.

Main spindle and drill head
The standard machine is equipped with a high-performance 12 kW main spindle. Standard drilling head DH17 (DH25 optional) provides comprehensive processing. All relevant spindles are motor-driven.

4-sided formatting
The router unit enables 4-sided formatting and cutouts for right-angled panels. With suitable clamp systems, chip removal on the clamp side is fully automatic.

Horizontal workpiece transport — processing from above
Horizontal processing allows single-person handling of heavy workpieces; height-adjustable supporting tables facilitate loading on both sides of the machine.

F4Integrate CNC software
F4Integrate includes tool library (F4Toolbox), CAM/CAD programming (F4Create) and machine operation (F4Operate) within a single interface. Based on G-code for easy integration and program transfer.

Toolchanger and tooling
The 17-position linear toolchanger accommodates a wide variety of tools and up to 4 aggregates to ensure short tool change times.

Spindle — technical notes
Available motor powers: 9 kW and 12 kW; speeds up to 24,000 rpm. Motor mounted on Z axis with inverter control. Dual linear guides and ground ball screws ensure precise Z-axis positioning. Automatic HSK F63 tool clamping with sensor verification and pneumatic toolholder cleaning. Optional C-axis (interpolating 360°) with compressed air interface available.

Individual drill head configurations (options)
Choose drilling heads to match production needs:

• DH17: 11 vertical spindles, 6 horizontal spindles, 1 grooving saw blade in X
• DH25: 17 vertical spindles, 8 horizontal spindles, 1 grooving saw blade in X
• DH18 with Lamello Clamex P inserts: 14 vertical spindles, two horizontal drilling groups (X and Y), grooving saw blade in X, two Lamello Clamex grooving cutters

Additional options and system features
Roller and axis extensions for longer workpieces, intelligent clamping systems, clean extraction technology, automation readiness and integrated software solutions.

Technical specifications

• Model: Creator 1250
• Max workpiece length: up to 6 m
• Max workpiece width: 1250 mm
• Max workpiece thickness: 80 mm
• Main spindle power: up to 12 kW (variants available)
• Main spindle speed: up to 24,000 rpm (depending on version)
• Spindle interface: HSK F63 (automatic clamping)
• Toolchanger: 17-position linear changer (space for up to 4 aggregates)
• Optional X-axis extension: up to 3600 mm
• Two-clamp belt feeder: independent servo-driven clamps; positioning speeds up to 90 m/min; pneumatic adjustable clamping force
• Dowel aggregate: 8 mm dowel width; dowel lengths 20/25/30/35/40 mm; tolerance ±0.2 mm; swelling dowels supported
• Drill head options: DH17 (11V/6H), DH25 (17V/8H), DH18 Lamello (14V + horizontal groups + Lamello cutters)
• Drill pre-stroke / max drill length: 70 mm
• Grooving saw (X): max diameter 120 mm; max tooth thickness 10 mm; up to 7,500 rpm
• Control software: F4Integrate (tool library, CAM/CAD, F4Operate)
• Processing concept: horizontal workpiece transport (processing from above)
• Construction: robust design with clean extraction technology and automation readiness
