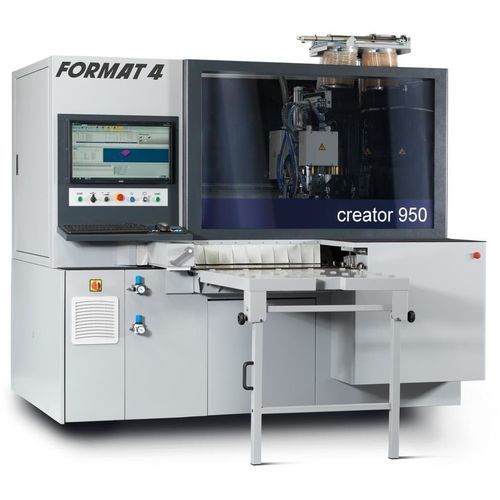

Vertical machining center creator 950

for wood2-spindlemilling

Overview
The creator 950 is a compact CNC machining center designed for efficient panel and interior-design processing in a 53 sqft footprint. Available in multiple equipment configurations, it delivers 4-sided formatting, integrated drilling and flexible aggregate options for furniture, door and interior production.

Your advantages at a glance

• Compact footprint: full machining capability in 53 sqft
• 4-sided formatting as standard for formatted panels
• Immediate productivity: minimal setup and fast cycle times
• No vacuum pods required; simple console positioning
• Range of applications from interior design to room doors and furniture components
• Top-down processing simplifies loading of heavy panels
• Intuitive control panel and user-friendly software (Woodflash)
• Optimised extraction for clean machining
• Competitive price/performance ratio across configurations

Product highlights and benefits

• 4-sided formatting and panel cutouts possible with router unit
• Automatic dowel insertion in X-axis for fast joinery
• Flexible use with aggregates; moulder spindle with compressed-air interface
• Horizontal workpiece transport with top processing — even heavy parts manageable by one operator
• Financing and production-optimisation options available
• Designed for continuous industrial operation with stable performance
• Ergonomic operation and award-winning design; Austrian manufacturing quality

Details / Functional features

• Main spindle and drill head continuously driven: 12 kW main spindle for high-performance machining. DH17 drilling head standard; DH25 optional.
• 4-sided formatting: Router unit enables formatting and cutouts on panels with right-angled outer edges.
• Woodflash control (Format4 software): Fast, intuitive programming with graphical 3D representation; suitable down to batch size 1.
• 4-position tool changer: Fast tool and aggregate changes for reduced downtime.
• Versatile aggregate options: Standard units and compressed-air interface increase flexibility and spindle life while improving chip removal.
• Second row of stops for long workpieces: Simplifies handling of extended parts.
• Horizontal workpiece transport — top processing: Enables single-operator handling of heavy panels; compatible with external supports (e.g. height-adjustable tables).
• Table types: Standard phenolic table; optional air-cushion table for sensitive surfaces to prevent damage during transport.
• Rear unload: Integration into production flow with rear unloading option.
• Table extensions: Optional roller-table extension, available with air cushion for workpieces over 1400 mm.
• Grip movement system: Dual grip system on X-axis with individually driven grips guided by a cambered toothed rack. 'Varius Drive' enables dynamic clamping of long workpieces.
• Vertical rollers: Switchable vertical pressure rollers for precise drilling and milling through panel thickness.
• Feed: Variable regulated feed speed.
• Automatic length measurement: Tool length measured in-machine with 0.01 mm accuracy to eliminate operator measuring errors.
• Dowel systems: Automatic X-axis dowel insertion in both directions; mobile dowel station for rapid setup.
• Additional seals: Optional guide seals for processing abrasive materials.
• Position-controlled extraction connection: Automatic distribution of extraction capacity between drill head and main spindle as required.
• Corpus processing with Lamello Clamex-P: Special milling tool enables serial use of detachable connection fittings for furniture, shelving and kitchens.

Technical specifications

• Space requirement: 53 sqft
• Main spindle power: 12 kW
• Drilling head (standard): DH17; optional DH25
• 4-sided formatting: router unit (for panels with right-angled outer edges)
• Tool changer: 4-position tool changer
• Tool length measurement accuracy: 0.01 mm (automatic)
• Table: phenolic table standard; air-cushion table optional
• Optional roller-table extension for workpieces > 1400 mm (air cushion available)
• Feed speed: variable regulation
• Dowel insertion: automatic dowel feed unit (X-axis) and mobile dowel station option
• Moulder spindle: compressed-air interface for aggregates
• Extraction: position-controlled extraction connection for main spindle/drilling head
• Workpiece transport: horizontal transport with top processing; compatible with external supports
