5-axis CNC machining center H150

verticalmillingdrilling

Overview

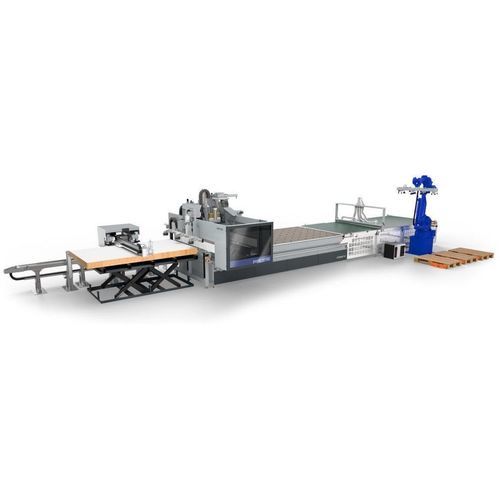

The FORMAT4 profit H150 is a 5-axis nesting CNC machining centre designed for modern cabinetmaking and furniture production. It performs panel cutting, drilling and milling in a single setup using nesting technology to maximise material yield and reduce cycle times. The machine is offered in four sizes and can be integrated into semi- or fully-automated production lines with various loading and unloading options.

Key advantages

• Complete machining of furniture panels in one operation (cutting, drilling, milling)
• Material and time savings through nesting optimisation
• Scalable to full automation with loading/unloading solutions
• Integrated SMART ZONING vacuum management for different panel formats
• Large Z passage (200 mm) for processing tall workpieces
• Automatic pre-labelling on the loading table to reduce errors and speed up handling

Features & Details

• High-tech 5-axis Format4 moulder spindle developed for professional woodworking
• Spindle power: 12 kW standard, 15 kW optional; inverter-regulated speed up to 24,000 rpm
• Liquid cooling and ceramic bearings for precision and stable operation
• Standard tool changer; optional moving rotary tool changer and pick-up space for a large saw blade — up to 36 tool positions
• Configurable drill head: vertical spindles or spindles plus grooving saw for vertical and horizontal processing; motor inverter up to 7,500 rpm
• Smart Zoning for fast changeover between panel sizes and efficient multi-format processing
• Phenolic resin worktable compatible with vacuum pods for flexible clamping
• Automatic control of extraction connection to allocate extraction between drill head and main spindle
• Upper and under-table extraction design to keep panel surfaces clean and remove chips
• Panel lifting table for synchronised alignment and automatic loading at the correct working height
• Automatic labelling system on the loading table for process reliability
• Status indicator with colour change to display machine status
• Maintenance-friendly hood with easy access for tool changes and service
• Optional cover for linear tool changer to protect HSK adaptors from dust and chips
• F4®Integrate CNC software (F4Operate, F4Create, F4Toolbox) and F4®Solutions suite for nesting optimisation, CAM/CAD and production workflow

Highlights (at a glance)

• Tailor-made financing solutions
• High performance in industrial continuous operation
• Customer-specific production solutions
• Solid design with premium components
• Multiple specification packages and high-tech options
• Precise engineering and build quality
• Designed for user comfort and serviceability
• Quality and precision from Austria
• Automation and software integration from a single supplier

Technical specifications

• Machine type: 5-axis nesting CNC machining centre
• Model name: profit H150
• Available sizes: four sizes (see product page for options)
• Main spindle: Format4 5-axis spindle; 12 kW standard, 15 kW optional
• Spindle speed: up to 24,000 rpm (inverter-controlled)
• Spindle cooling & bearings: liquid cooling; ceramic bearings
• Z passage (clearance): 200 mm
• Tool places: up to 36 (standard changer + optional rotary changer + pick-up space)
• Drill head: configurable; inverter motor up to 7,500 rpm
• Vacuum management: SMART ZONING
• Supported panel formats (examples): 3090 × 2100 mm; 3090 × 1530 mm; 2500 × 1250 mm
• Worktable: phenolic resin table compatible with vacuum pods
• Extraction: upper table and under-table extraction; position-controlled extraction connection
• Automation: compatible with various loading/unloading and full automation solutions; panel lifting table included
• Labelling: automatic pre-labelling on loading table
• Software: F4®Integrate (F4Operate, F4Create, F4Toolbox); F4®Solutions
• Maintenance: hood with maintenance opening for quick access
