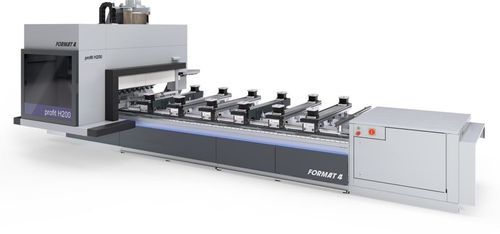

Multifunction cutting and machining center H200R

CNCwooden

Overview
The FORMAT4 profit H200R is a universal CNC machining centre designed for efficient series production and bespoke solid wood components (doors, windows, stair parts, furniture). Its reengineered steel-ribbed chassis provides high rigidity and dynamic performance. Integrated software and multiple tool changer options allow flexible automation and precise processing for industrial woodworking applications.

Main features

• Up to 36 tool positions with several tool changer configurations (4-position linear changer available)
• F4®Integrate CNC software: integrated tool library, CAM (F4Create) and machine operation (F4Operate) on a single interface
• lightPos LED vacuum pod positioning with over 6,000 LEDs for fast, visual and accurate part placement
• 2-circuit vacuum management with console locking for increased process reliability
• Positioning display for consoles and vacuum pods; optional laser-accurate pod indication
• Various vacuum pod shapes and reusable vacuum pads and clamps for secure support
• Compressed-air frame clamping devices for higher clamping force; air connections on console bottom
• Intuitive 24" touchscreen control with structured user interface
• Automatic extraction hood for reduced dust and noise emissions
• Loading supports (feeding rails) to assist single-operator handling of large workpieces
• Template milling connection for complex component clamping
• Individual console activation/deactivation for waste removal without releasing vacuum
• Chipping deflection plate and chip conveyor for efficient chip/dust removal
• Status indicator lighting to visualise machine states

Highlights / Additional benefits

• Tailor-made financing solutions
• Designed for continuous industrial operation
• Customer-specific production optimisation
• Robust machine chassis with quality components
• Multiple specification packages and automation options
• Complete engineering precision and operator ergonomics
• Comprehensive pre- and post-sales service
• Software and machine from a single supplier for streamlined integration

Details (selected)
F4®Integrate
All-in-one CNC software combining F4Toolbox (tool library), CAM with integrated CAD (F4Create) and machine operation (F4Operate) in a single, consistent interface. Based on G-code for straightforward integration into existing production workflows.

lightPos
Visual positioning system with more than 6,000 LEDs indicating vacuum pod size, position and orientation. RGB LEDs on the X-axis indicate processing status; LEDs along X and Y axes visualise part position and dimensions to reduce setup time.

Rows of stops
The H200R features rear and centre fence rows with solid cylinder stops for flexible referencing of small to large workpieces.

Maintenance opening
The hood opens easily to provide quick access for tool changes and routine maintenance.

Frame processing
Compressed-air frame clamping devices deliver higher clamping forces; compressed air connections are located on the console bottom.

Working area (table)
Working area: X = 3300 mm
Y = 1280 mm
Z = 250 mm (passage height from console height)

Technical specifications

• Model: profit H200R
• Brand: FORMAT4
• Working area (X × Y × Z): 3300 mm × 1280 mm × 250 mm (passage height from console)
• Spindle: inverter-controlled moulder motor, 12–15 kW, up to 24,000 rpm
• Tool interface: HSK F63 with automatic clamping and sensor-controlled tool tension
• Fourth axis: C-axis standard, interpolating 360° with compressed air interface
• Tool positions: up to 36 (various tool changer options; 4-position linear available)
• Vacuum system: multiple pod shapes, 2-circuit vacuum management, optional lightPos
• Control: 24" touchscreen with F4®Integrate (F4Toolbox, F4Create, F4Operate)
• Extraction: controlled extraction hood, chipping deflection plate and chip conveyor
• Automation & handling: loading supports / feeding rails for single-operator handling
• Design: solid steel ribbed chassis for maximum stability
