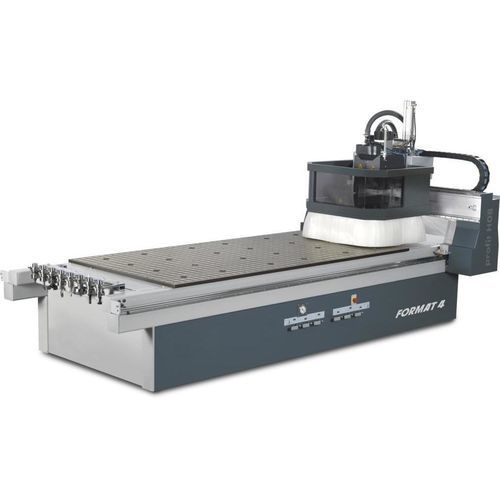

CNC cutting and machining center H08

wooden

Product overview
The profit H08 from Format4 is the CNC machining centre for professional nesting applications in the smallest of spaces. The machine is designed for high precision and increased productivity when processing a variety of materials including wood, plastics, aluminium composite panels and plasterboard.

Main features

• Quick and simple: standard panel processing in the smallest of spaces
• Uncompromised efficiency for wood, plastic, aluminium composite panels and plasterboard
• Portal design with “Gantry” drive: quick, precise and low maintenance
• Matrix table with optimised grid geometry for perfect nesting results
• Optimum operational safety guaranteed by light beam sensor control and emergency stop
• Machines and software from one supplier: integrated Format4 software solutions
• Format4 Woodflash Control: simple program creation, numerous automation possibilities and constant program control
• Barcode connection for networked workshops

Highlights

• Spindle options with inverter control, automatic HSK F63 tool clamping and pneumatic tool holder cleaning
• Controlled extraction connections for efficient dust extraction between drilling head and main spindle
• Portal (Gantry) drive: dual side driven gantry, rack and pinion drive in X and Y for high traverse speeds
• Vacuum system and vacuum grid table for maximum hold-down force and even suction distribution
• Tailor-made automation: automatic unloading unit with electromotive offloading pusher option
• Many specification packages and high-tech solutions available

Software & control

• Format4 Woodflash Control: user-friendly programming, quick program creation and many automation options
• Compact-control variant: runs ISO-codes and Woodflash programs from external software
• Barcode connectivity for integration into networked workshops

Vacuum & nesting
The matrix table with optimised grid geometry provides full-surface support and exact positioning of workpieces. Reference fences can be mounted directly to the table and optionally monitored with collision-prevention sensors.

Safety & operator convenience

• Light beam sensor monitors access to the danger area
• Emergency stop to abort running programs
• FORMAT4 electrical cabinet houses CNC control with LED status display, potentiometer and USB port

Who is it for
FORMAT4 profit H08 is designed for professional users who need a compact nesting CNC capable of processing panels and a wide range of materials with industrial performance, automation options and integrated software solutions.

Caractéristiques / spécifications techniques

• Model designation: profit H08
• Working fields (options): H08 13.25: X = 2500 mm; Y = 1250 mm; Z = 85 mm
• Working fields (options): H08 16.31: X = 3090 mm; Y = 1530 mm; Z = 85 mm
• Vacuum grid table: standard 60 x 60 mm with 4 vacuum connections per field; optional 30 x 30 mm upgrade
• Vacuum system holding capacity: up to 750 m³/h
• Working area subdivided into vacuum fields: H08 13.25 = 6 fields; H08 16.31 = 8 fields (manually controlled via front hand lever)
• Spindle / milling motor: inverter-controlled; motor power options 10, 12 or 15 kW depending on series; up to 24,000 rpm
• Tool clamping: automatic HSK F63; pneumatic tool holder cleaning; clamping checked by sensors
• C-axis: available as interpolating 360° axis with compressed air interface for aggregates
• Drilling head variants: DH 8 (8 vertical spindles); DH 12 (12 vertical spindles); DH 16 (12 vertical + 4 horizontal spindles and 2 saw blades)
• Drilling motor: inverter driven, vertical drilling up to 6,000 rpm (depending on configuration)
• Tool changer: side-mounted 8, 11 or 15 position tool changer
• Automatic tool measuring: tool lengths stored to 0.01 mm in the tool database
• Gantry / drive: dual side-driven gantry for maximum precision and repeatability; rack and pinion drive in X and Y for high traverse speeds and short processing/tool change times
• Extraction features: controlled extraction connections transfer full extraction capacity between drilling head and main spindle; pushing unit option allows third extraction position for dust table extraction
• Pusher / unloading: height-adjustable pushing unit reduces set-up times; automatic unloading unit available for finished workpieces to shorten processing cycles
• Table material: vacuum table made from phenolic resin (non-corrosive, stable against heat/cold)
• Materials processed: wood, plastics, aluminium composite panels, plasterboard; with special equipment also Alucobond and similar materials
• Automation & integration: many automation options, network capability, F4Solutions software compatibility
